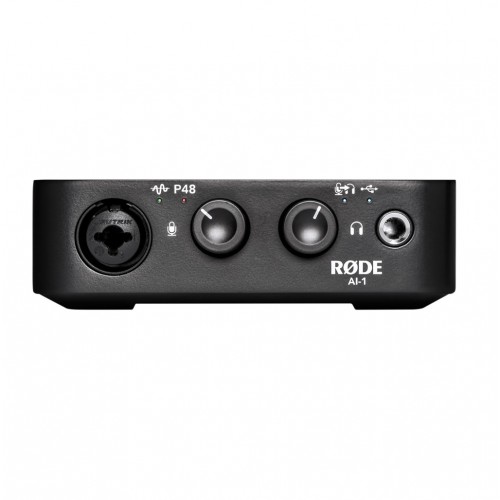

Rode AI-1 Single-channel Audio Interface

Rode AI-1 Single-channel Audio Interface

• Ai-1 Single channel Audio interface with combo XLR/instrument input, High quality headphone amp and Balanced 1/4" outputs.

• The AI-1 is a professional-grade single-channel audio interface that delivers exceptional audio quality for everything from bedroom music recording to livestreaming and podcasting. Featuring a studio-grade preamp, a high-quality Neutrik™ combo jack for connecting microphones or instruments, and a high-power headphone amplifier for crystal-clear audio monitoring and playback, it’s the perfect interface for recording studio-quality audio at home.


  Key Features

  • Professional-grade single-channel audio interface
  • Neutrik combo jack for connecting microphones, guitars, synthesisers and other instruments
  • Studio-grade preamp with level indicator
  • High-power headphone amplifier
  •

  • Specification
  • AI-1 Audio Interface Specifications

    Computer Connectivity	USB
    Form Factor	Desktop
    Simultaneous I/O	1 x 2
    Number of Preamps	1
    Phantom Power	Yes
    Bit Depth	24-bit
    Sample Rates	44.1 kHz 48 kHz 88.2 kHz 96 kHz
    Analog Inputs	1 x  Neutrik XLR-1/4” combo
    Analog Outputs	2 x 1/4” (impedance balanced) 1 x 1/4” (headphones)
    Direct Monitor	Yes
    USB	1 x USB Type C
    Bus Powered	Yes
    OS Requirements	Mac OS 10.10 or later Windows 7 or later
    Power	USB bus-powered
    Depth	100mm total (with knobs) chassis: 88mm
    Width	124mm
    Height	38mm
    Weight	1lb 3.7oz 560g

    Input

    XLR/MIC INPUT

    Dynamic Range	104dBA
    Equivalent Input Noise @ Maximum Gain (Source Impedance 150 ohms, 20Hz-20kHz, A-weighted)	–128dBA
    Frequency Response (Measured after ADC)	20Hz – 20kHz better than ±1dB
    Gain Range	0dB – >45dB
    Gain Range	1.3k Ohms

    INSTRUMENT INPUT

    Dynamic Range	99dBA
    Frequency Response (Measured after ADC)	20Hz – 20kHz better than ±1dB
    Gain Range	0dB – >45dB
    Input Impedance	900k Ohms

    Output

    MONITOR OUTPUTS

    Maximum Output Level	-6dBu
    Frequency Response	20Hz – 20kHz better than ±1dB

    HEADPHONE

    Max output power at 1% THD

    32Ohms – >210mW 300Ohms – >390mW
