RØDELink Newsshooter Kit - Plug-in XLR digital wireless system

RØDELink Newsshooter Kit - Plug-in XLR digital wireless system

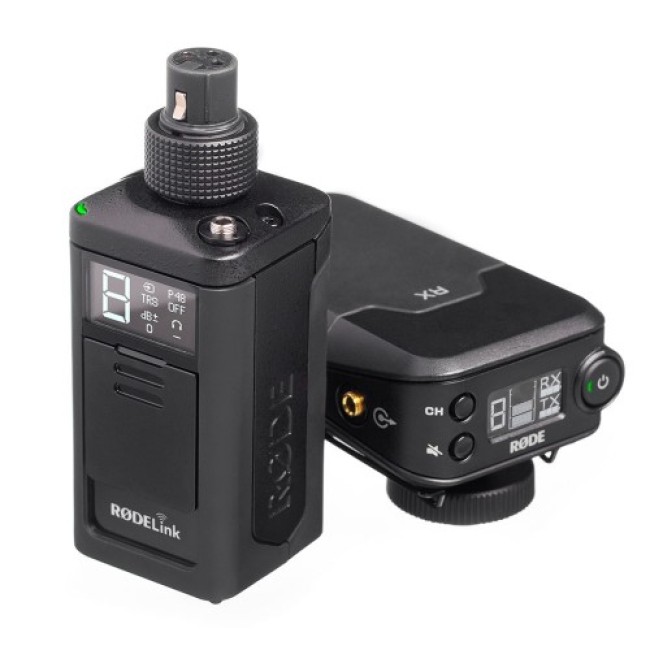

• RØDELink Newsshooter Kit – Wireless XLR Transmitter & Camera-Mount Receiver.

• RØDELink represents the next generation of digital wireless systems. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards).

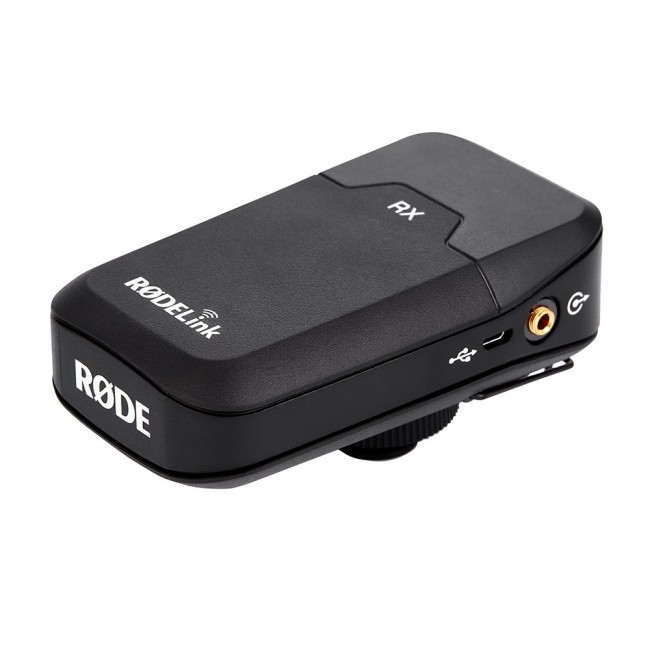

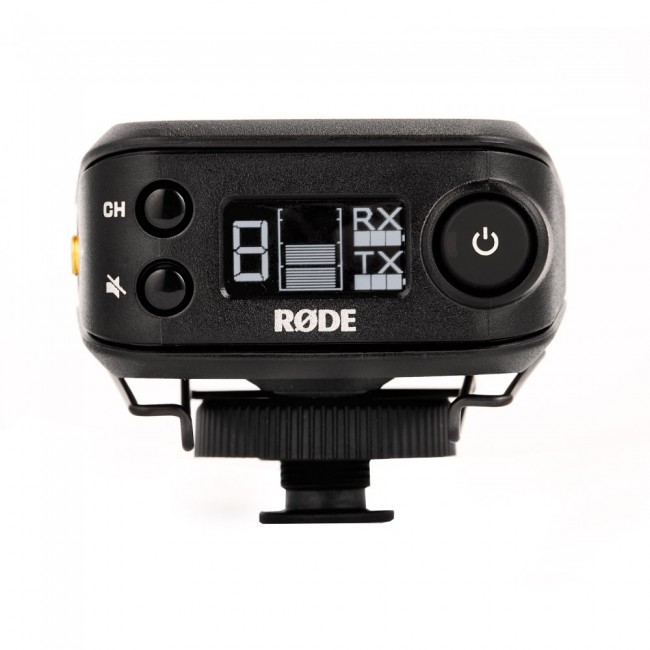

  The RØDELink Newsshooter Kit provides everything you need to start shooting video wirelessly with XLR microphones, including a camera-mounted receiver and an XLR transmitter. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection.

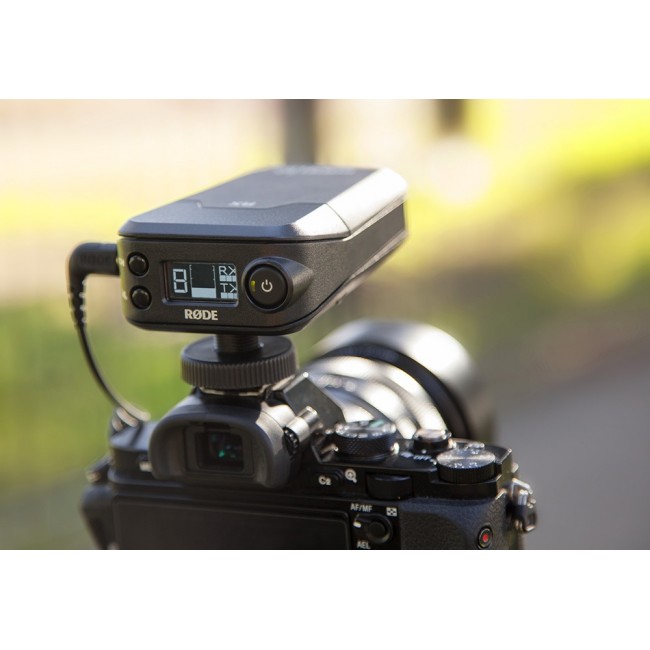

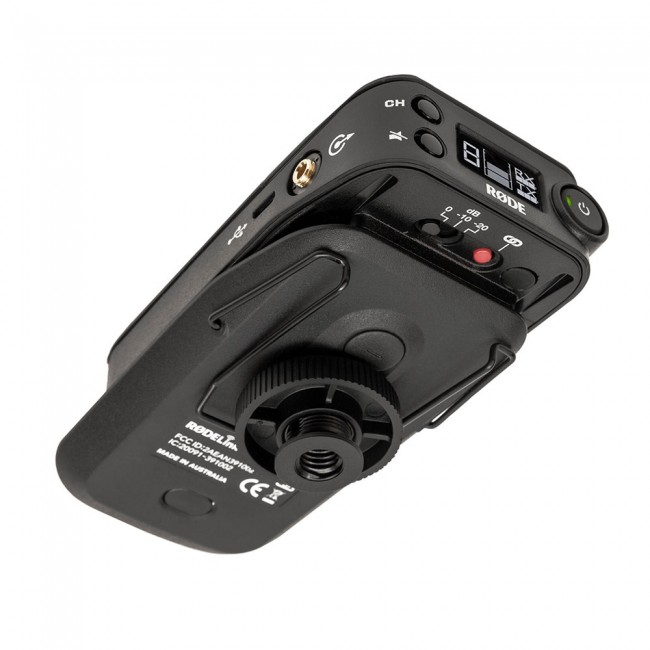

  The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions.

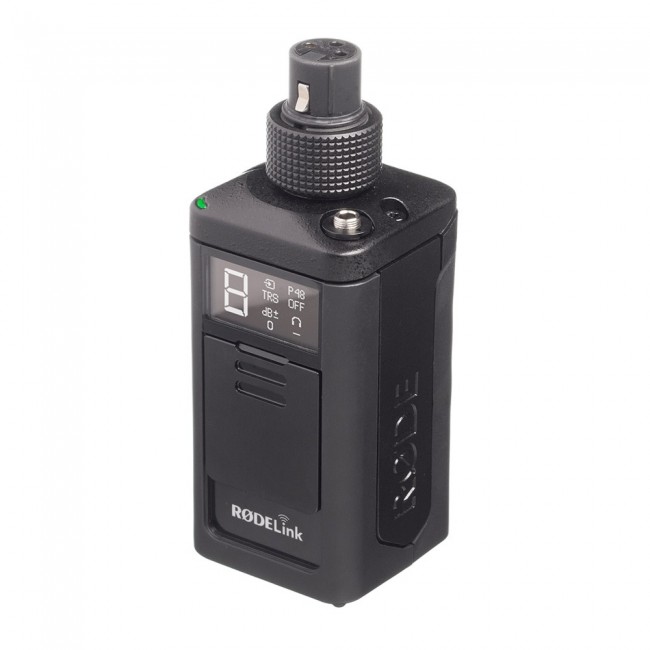

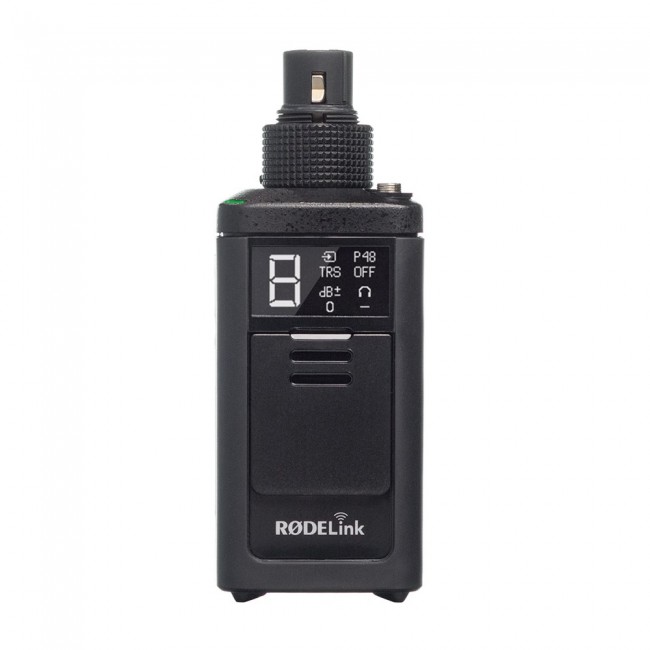

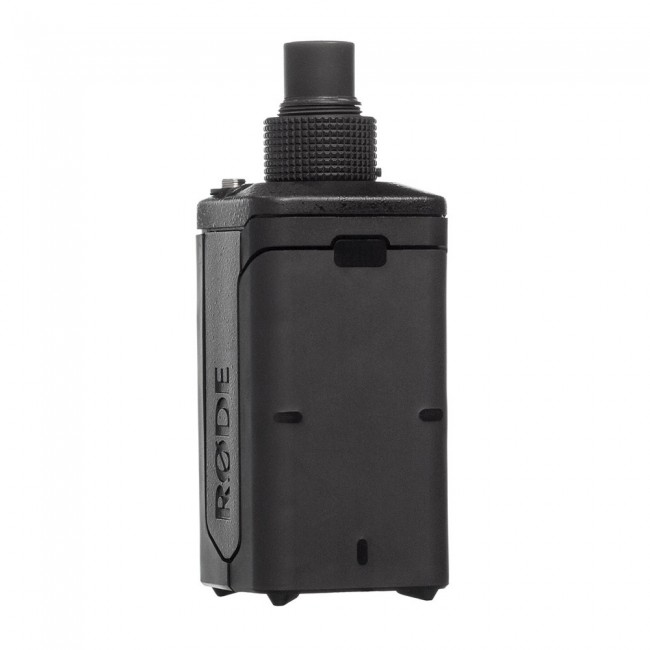

  The transmitter (TX-XLR) easily connects to handheld presentation microphones as well as shotgun microphones, with a 3.5mm input and headphone output.

  Features

  • Series II, 2.4GHz digital transmission
  • 128-bit encryption
  • Up to 100 metres range*
  • OLED display (on receiver)
  • One touch pairing Five level gain control AA battery, NP-F battery or USB powered
  • Locking XLR input and headphone output on transmitter.
  •

  • Specification

  •     Acoustic & Electrical Specifications

    Transmission Type

    2.4GHz Fixed Frequency Agile System

    ---

    System Dynamic Range

    112dB

    ---

    Range (Distance)

    Up to 100m

    ---

    Frequency Range

    35Hz - 22kHz

    ---

    Maximum Output Level

    1v Rms (2.8v P-p)

    ---

    Maximum Input Signal Level

    1v Rms (2.8v P-p)

    ---

    Maximum Latency

    4ms

    ---

    Power Source

    RX-CAM - 2 X AA Battery Or MicroUSB

    TX-XLR - 2 X AA Battery, Sony NP-F Battery Or MicroUSB

    ---

    Antenna

    Internal

    ---

    Output Connection

    RX-CAM - 3.5mm TRS Locking Jack Socket - Dual Mono

    ---

    Input Connection

    TX-XLR - XLR With Locking Collar, 3.5mm TRS Locking Jack Socket

    ---

    Output Impedance

    RX-CAM - 300Ω

    ---

    Input Impedance

    TX-XLR - 1kΩ (XLR), 10kΩ (3.5mm)

    ---

                                Mechanical Specifications

    Dimensions (mm)

    RX-CAM - 111 (L) X 65 (W) X 52 (H)

    TX-XLR - 120 (L) X 45 (W) X 45 (H)

    ---

    Weight (g)

    RX-CAM - 190

    TX-XLR - 222
