• The RØDECaster Video is a revolutionary all-in-one video and audio production console that provides intuitive control over every element of your content.

• The RØDECaster Video is a revolutionary all-in-one video and audio production console that provides intuitive control over every element of your content. Combining powerful video switching, recording and production capabilities with a fully integrated professional audio mixer, it offers a seamless way to streamline and supercharge your workflow for studio productions, video podcasts and interviews, and stream live events with broadcast quality.

  FEATURES

  • Switch between up to six video sources and seven fully customisable scenes at the press of a button
  • High-performance octa-core CPU video and audio processor
  • Four full HD (1080p) HDMI inputs with auto frame rate conversion and two configurable HDMI outputs for viewing program, preview and multiview
  • Two flexible USB-C ports for connecting compatible webcams and RØDE USB audio devices to use as additional video and audio sources
  • Two studio-grade Neutrik® combo jacks with ultra-low-noise, high-gain Revolution Preamps™ for capturing pristine audio from XLR microphones, instruments or any other audio source
  • Dual internal wireless receivers for connecting RØDE Series IV wireless microphones
  • Powerful APHEX® audio processing, including an EQ, compressor, noise gate, high-pass filter, de-esser and the legendary Aural Exciter™, Big Bottom™ and Compellor™ effects
  • 2-inch high-resolution touchscreen and versatile rotary encoder for quick configuration and setting adjustment
  • Ability to create seven complex scenes with multiple layers of video, media and graphics, which can be saved and triggered at the touch of a button
  • Automatic chroma keying for effortlessly replacing backgrounds with media or live video inputs
  • Media playback, graphic overlays, keying, transitions and multi-source scene creation all accessible from the front panel
  • Innovative "Inspect" feature for quick-and-easy preview and configuration of any input or scene
  • Intelligent auto-switching for seamless hands-free switching of video sources and scenes based on audio inputs
  • Stream directly to all major platforms via Wi-Fi or Ethernet, or to streaming software via USB
  • Record directly to external USB storage device, including isolated (ISO) recording for post-editing flexibility
  • Remote control, user-assignable graphics and media, custom scene building, audio mixing and effects, and other advanced configuration options via RØDE Central
  • Designed and made in RØDE’s state-of-the-art facilities in Sydney, Australia
  •

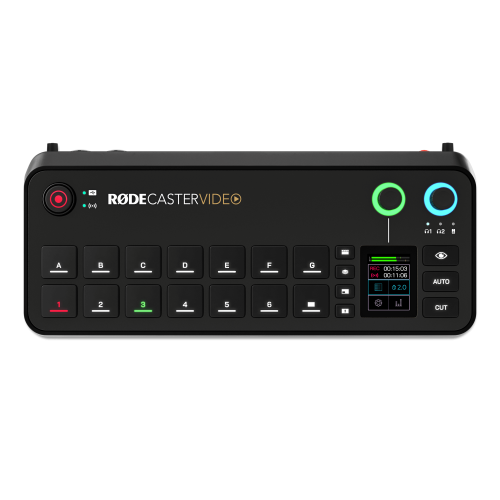

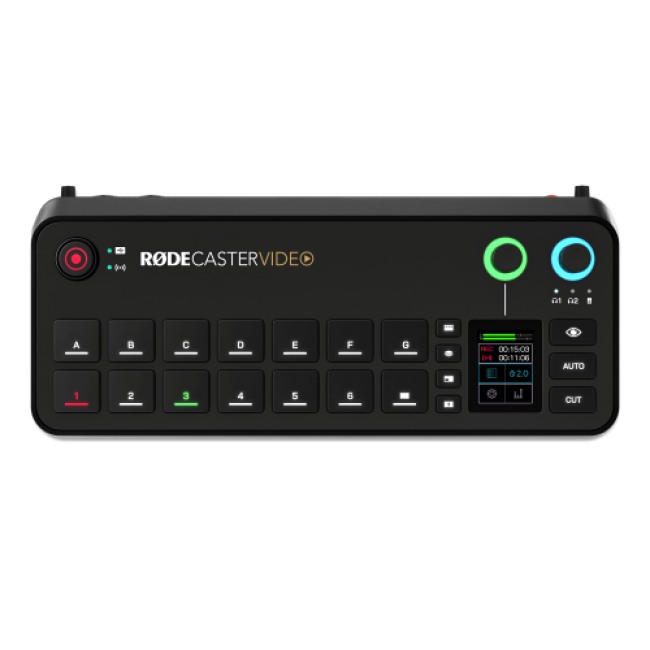

  • 1) Input and Scene Buttons

    Switch between video sources or fully customised scenes with the touch of a button.

    2) Function Buttons

    Quickly and simply access media playback, graphic overlays, multi-source layouts and chroma keying.

    3) Touchscreen and Encoders

    Control and configure your production with the intuitive touchscreen and versatile encoder.

    4) Inspect Button

    Preview and configure any input or scene on-the-fly with the innovative Inspect button.

  •

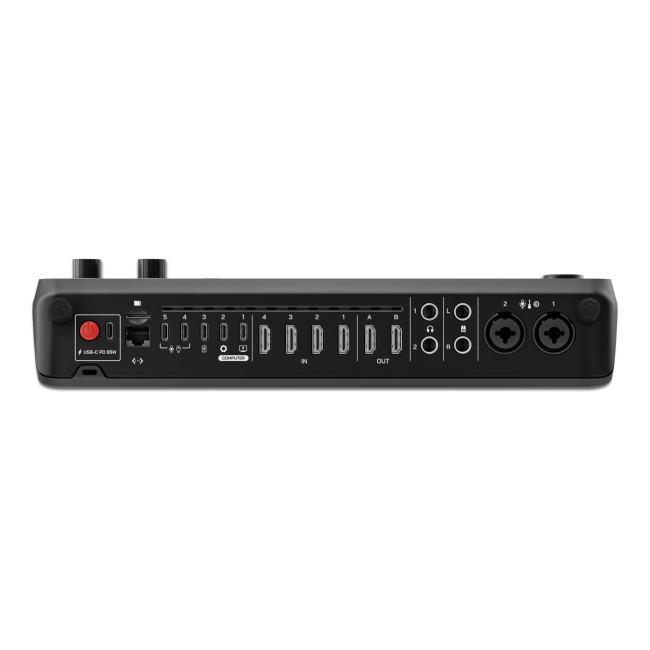

    5) USB Video and Audio

    Connect up to two compatible webcams or RØDE USB microphones via USB 4 and 5 for additional video and audio options.

    6) HDMI Inputs and Outputs

    Capture up to four HDMI video sources and monitor your production with preview, multiview or program feeds.

    7) Headphone and Speaker Outputs

    Monitor your audio with speakers or two pairs of headphones, each with custom mixes and levels.

    8) Revolution Preamps™

    Record XLR and 1/4-inch equipment in stunning detail with the ultra-low-noise, high-gain Revolution Preamps™.

    Intuitive Interface




    The large high-resolution touchscreen and versatile rotary encoder provide intuitive hands-on control over every aspect of your production, from applying transitions and previewing your inputs to adjusting volume levels and configuring settings.




    Wireless Remote Control


    For setups where you can’t be close to the console, the RØDECaster Video boasts complete wireless remote control via RØDE Central, allowing you to switch inputs, adjust settings and configure complex scenes from your computer.










































































    RØDE Central is the ultimate companion software for the RØDECaster Video. Craft the perfect multi-camera layout with the scene builder, take control over all your audio sources at once with the audio mixer and access advanced configuration settings to craft the perfect production.
