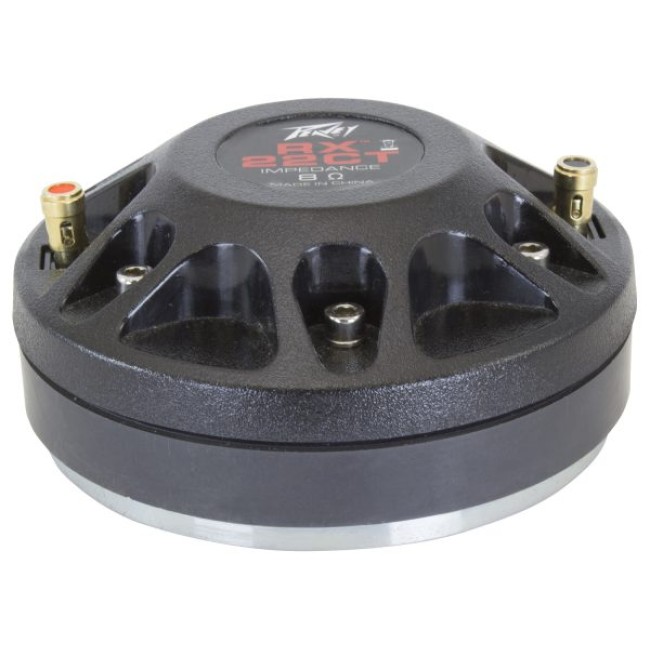

Peavey RX™22 CT Driver Replacement High Frequency Driver Unit

Peavey RX™22 CT Driver Replacement High Frequency Driver Unit. Power Capacity 1200 Hz to 20,000 Hz: 160 W peak, 80 W program, 40 W continuous using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
Model :RX 22CT HF DRIVER
SKU :03616190
  0 reviews / Write a review
only  2 item(s) remaining
AED 489.30
Rate inclusive of VAT
Order Now
  •  Condition: New

Peavey RX™22 CT Driver Replacement High Frequency Driver Unit

Features

  • Throat Parameter: .960" / 24.38 mm
  • Nominal Impedance: 8 Ohms
  • Minimum Impedance: 7.7 Ohms
  • DC Resistance: 7.0 Ohms
  • Power Capacity 1200 Hz to 20,000 Hz: 160 W peak, 80 W program, 40 W continuous using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
  • Sensitivity: 107 dB / 1W 1m On-axis on 90º H x 40º V horn
  • Nominal Efficiency: 30%
  • Frequency Response: 650 Hz to 20,000 Hz
  • Recommended Crossover: 1200 Hz at 12 dB / Octave
  • Lowest Recommended Crossover: 1000 Hz at 12 dB / Octave
  • Diaphragm: Commercially pure titanium
  • Voice Coil Diameter: 2.0" / 50.8 mm
  • Voice Coil Material: Copper Clad Aluminum Wire with a High temp Kapton bobbin
  • Voice Coil Cooling: Ferrofluid
  • Flux Density: 18,000 gauss (1.8T)
  • Dimensions: 5.02" (128 mm) diameter x 3.13" (80 mm) depth
  • Horn Coupling Diameter: .960 (24.4 mm)
  • Horn Coupling Threads: Standard 1 3/8" - 18"
  • Packed Weight: 6.39 lb (2.9 kg)
  • Packed Length: 6.125" (15.56 cm)
  • Packed Width: 5.75" (14.61 cm)
  • Packed Height: 3.625" (9.21 cm)
