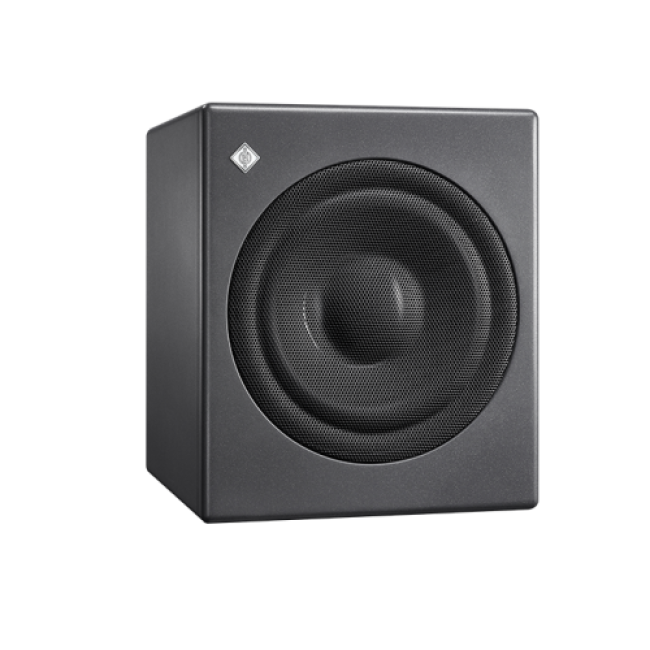

Neumann KH 750 DSP D G Active DSP Subwoofer with 2.0 / 0.1 Bass Manager

Neumann KH 750 DSP D G Active DSP Subwoofer with 2.0 / 0.1 Bass Manager

• Compact DSP-controlled closed cabinet subwoofer. Active DSP Subwoofer with 2.0 / 0.1 Bass Manager, 10” driver, EU/UK/US mains cables.

• The newly designed 10” long-throw driver has a strong linear working magnet system with ELFF™ technology (Extremely Linear Force Factor™). As subwoofers are usually placed on the floor, a robust grille protects the driver from accidental damage. The ultra-compact cabinet is a closed design which brings the fastest possible transient response.

  The two analog XLR inputs are balanced as are the two analog XLR outputs. The 192 kHz / 24-bit digital input can accept AES3 and S/P-DIF signals. There is a bypassable standby function and the switch-off time can be adjusted in the Neumann.Control iPad® app.

  The KH 750 DSP can be used in music, broadcast, and post production studios for tracking, mixing, and mastering.

  APPLICATIONS:

  • Increasing the bass extension of the monitoring system
  • Increasing the maximum SPL of loudspeakers
  • Decreasing harmonic and intermodulation distortion of loudspeakers
  • Reproducing the LFE channel
  • Reproducing the “Sub” signal of a bass managed multichannel source
  • Working as an extension for KH line subwoofer systems

  • The compact KH 750 DSP is the ideal choice for smaller rooms and smaller studio monitors. It has a unique and flexible Bass Manager (2.0/0.1), analog and digital inputs, four routing modes and adaptable acoustical controls to be used in many different configurations.

    In addition to its outstanding acoustic properties this DSP-based subwoofer offers functions for the Neumann monitors connected to its outputs regarding the interplay with the following tools:

    • Automatic Monitor Alignment – Automatic room correction of stereo systems using the Neumann MA 1 measurement microphone (software for Mac/PC)
    • Neumann.Control – Free iPad®-App for setup, operation, and room correction of stereo systems via guided and/or manual alignment

    This also applies to all non DSP-based Neumann monitors connected (analog) to the KH 750 DSP, which enables them to make use of the subwoofer’s DSP power.

    Features




    (1)
    Compact ultra stiff wooden cabinet

    • Tough painted finish and high density rubber isolating feet
    • Excellent self-damping properties leading to minimal cabinet resonances
    • No standing wave resonances inside cabinet
    • Tight bass sound due to very low group delay

    (2)
    In-house modelled long-throw bass driver with Extremely Linear Force Factor™ (ELFF™) and robust built-in grille

    • Damping of break up modes brings low distortion at high sound levels
    • Extremely linear force factor provides low harmonic distortion even at high excursions
    • Reduced air noise and improved rocking modes
    • Grille protects against mechanical damage

    (3)
    2.0/ 0.1 Bass Management

    • Stereo and externally bass managed applications
    • Bypassable 4th order crossover for maximum compatibility with consumer reproduction systems
    • Allows main loudspeakers to play louder and with lower distortion

    (4)
    Four routing modes

    • Stereo 80 Hz bass management
    • External bass management
    • LFE up to 120 Hz
    • LFE full range

    (5)
    XLR electronically balanced analog inputs and outputs

    • Standard interfacing to professional equipment
    • Daisy chain output for subwoofer arrays

    (6)
    Wide range input gain and output level controls

    • Easier interfacing with signal sources

    8-position phase control, continuous low cut control

    • More control in various acoustical environments
    • Easy to correct room modes

    (7)
    Universal switched-mode power supply (100 … 240 V)

    • One version works in any country and robust to poor quality mains supply

    (8)
    Ground lift

    • Reduced noise in electrically noisy environments and overcomes ground loops

    (9)
    Low heat dissipation amplifiers with large headroom and sophisticated protection circuitry

    • Improved transient response
    • Assured reliability and safety

    Separate thermo limiter to protect the voice coil and power amplifier

    • Soft clip and excursion limiters
    • Increases system reliability
    • Allows extraction of the maximum performance from the system

    (10)
    Digital input and output

    • 192 kHz, 24-bit conversion
    • BNC connector: AES3 and S/P-DIF signals

    (11)
    Network connector using standard IP protocol and your existing network infrastructure

    • Loudspeaker system can be controlled via the Neumann.Control iPad®-App and the MA 1 - Automatic Monitor Alignment Software.

    (12)
    Control function

    • Toggle switch for selection of operation and calibration on the device or via the network using the Neumann.Control iPad® app and the MA 1 - Automatic Monitor Alignment software.

    (13)
    Input selector switch

    • For switching the input source from analog / digital AES3 (automatic) to AES67.

    More features (with Neumann.Control iPad® app)

    • Lip-sync delay (100 ms): To align audio and video signals up to 2.5 frames at 50 Hz or 3 frames at 60 Hz
    • Time-of-flight delay (2 x 20.8 ms): To compensate for listening distance differences up to 7.2 m (12 ft 5 in)
