Mipro Wireless Handheld Micro Phone System

• ACT51 Single-Channel Diversity Receiver, ACT5H Handheld Transmitter

• ACT51 Single-Channel Diversity Receiver

  ACT51 have both Single & Dual Channels 1/2-rack design and up to 8 preset compatible systems per band. Industry’s only color VFD (Vacuum Florescent Display) delivers a very bright light with exceptionally clear contrast for clear viewing in day/night environments. It Features MIPRO’s patented and now, industry standard “AutoScan” and ACT (Automatic Channel Targeting) channel setup technology.

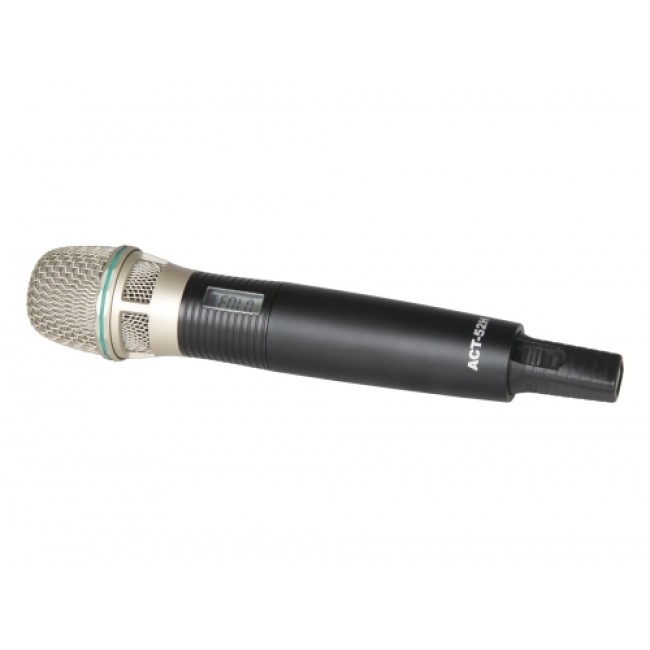

  ACT5H Handheld Transmitter



  ACT-5H has a lightweight, yet durable housing. Outstanding transmission reliability with extremely low handling noise. Featuring industry's first ACT channel sync set-up. The standard hypercardioid condenser microphone capsule provides high fidelity, wide frequency response, high dynamic range, clarity and detailed sound image.

  ACT51 Single-Channel Diversity Receiver

  	Channel	Single
  	Chassis	EIA Standard 19 " 1/2U metal chassis
  	Display	Green backlit LCD with automatic bright (working) and dim (standby) displays during performance.
  	Frequency Range	UHF 480 ~ 934 MHz (country dependent)
  	Bandwidth	24 MHz
  	Deviation	< ± 40 kHz
  	Receiving Mode	CPU-controlled diversity receiving
  	Sensitivity	10 dBμV at S/N > 80 dB
  	S/N Ratio	> 106 dB(A)
  	T.H.D.	< 0.5% @ 1 kHz
  	Frequency Response	50 Hz ~ 18 kHz
  	Squelch	“PiloTone & NoiseLock” dual-squelch circuit
  	Audio Output	Balanced XLR & Unbalanced Ø 6.3 mm
  	Max. Output Level	Balanced: 0 dBV ; Unbalanced: +10 dBV / 0 dBV
  	Power Supply	12 ~ 15 V DC, 1A
  	Dimensions (W × H × D)	210 × 44 × 180 mm / 8.3 × 1.7 × 7.1 "
  	Net Weight	Approx. 0.8 kg / 1.8 lbs
  	Note	Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.

  ACT5H Handheld Transmitter

  	Frequency Range	UHF 480 ~ 934 MHz (country dependent)
  	Bandwidth	24 MHz
  	RF Output Power	10 ~ 30 mW (country dependent)
  	Deviation	< ±40 kHz
  	Spurious Emission	< -55 dBc
  	Max. Audio Input	0 dB = microphone capsule sensitivity
  	Housing	Black-color metal
  	Dimensions (Ø × L)	51 × 263 mm / 2 × 10 "
  	Net Weight	Approx. 294 g / 10 oz
  	Battery	2 × AA alkaline
  	Operating Time	Min. 12 hours
  	Note	Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.

• ACT51 CPU-controlled diversity receiving. "PiloTone & NoiseLock" dual-squelch circuit eliminates signal drop-out and minimizes interference. All controls are intuitive and easily operated via electronic buttons to prevent accidental operation. Industry’s only RF interference warning indicator for proper adjustments of the SQ level. Increase sensitivity to extend receiving range; decrease the sensitivity to reduce interference. Auto Scan function allows quick search for an interference-free working channel. World’s first ACT™ function provides precise and rapid frequency sync to the transmitters. Output level is pre-adjusted to equal the microphone capsule’s sensitivity. Switchable output levels for the best sound quality options. Receiver provides bias voltage for MIPRO antenna systems to enhance reception range and signal stability. ACT5H Innovatively designed metal housing in MIPRO’s distinctive aesthetic and ergonomic style. Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers. The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound. The upper grille is easy to detach for cleaning and hygiene practice. Patented capsule suspension design virtually eliminates vibration and handling noises. The bottom housing with built-in high-efficiency antenna features power switch, mute and setup buttons. Patented end-cap can be reversed to allow shielding of power on/off during performance. Backlit LCD displays all operational parameter information. Gain setting of 0 dB is the same as microphone input sensitivity. Proprietary high-definition modulation circuit sustains high SPL without distortion. World’s first ACT™ function provides precise and rapid frequency sync to the receiver.
