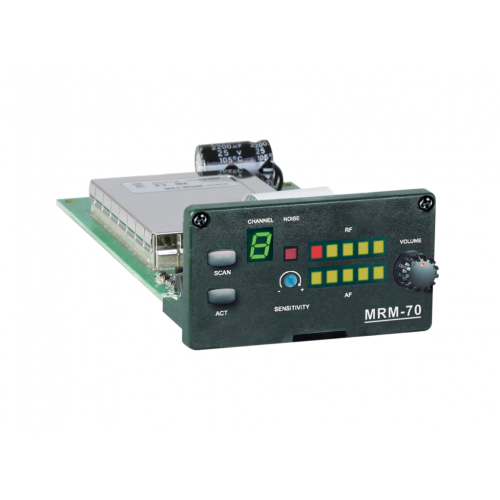

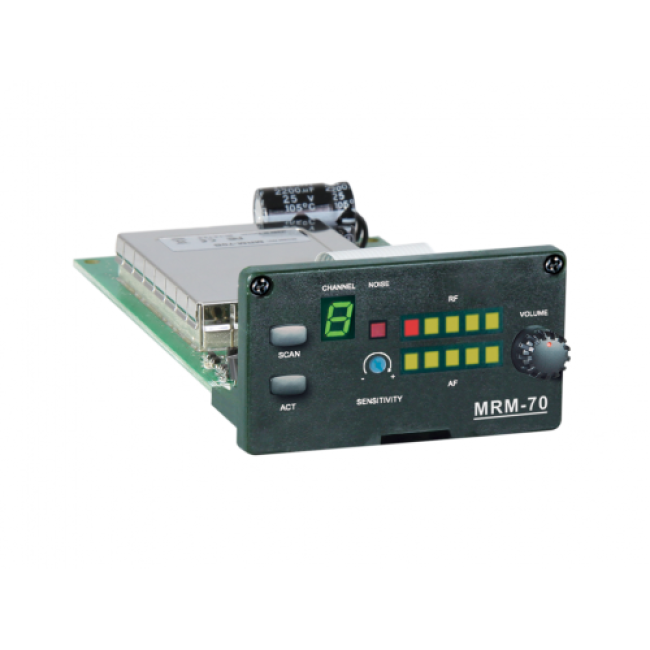

Mipro MRM-70 UHF Single-Channel Diversity Receiver Module

The easy to install and use plug-and-play MRM-series receiver modules are designed mainly to fit MIPRO wireless portable PA systems for wireless microphone applications. Other unique installations can be considered for PA amplifiers, mixers, signal processors, and active speakers.

• Preset 16 auto-scannable frequencies.
• 『SCAN』and『ACT』, interference warning indicator and “Sensitivity” adjustor.
• Easy-to-read LED channel display and 5-segment RF and audio meters.
• Diversity receiving technology for optimum reception quality.
• Modular design allows for easy installation and replacement.
•

• Specification

• uency Range	UHF 480 ~ 934 MHz (country dependent) Egypt: 5D (597-608 MHz)
  	Bandwidth	24 MHz
  	Preset channels	16
  	Channel Set-up	Scan & ACT Sync
  	Display Status	Channel, RF & audio meters and interference warning indicator
  	Receiving Mode	CPU-controlled diversity receiving
  	Sensitivity	10 dB μ V at S/N > 80 dB
  	S/N Ratio	> 100 dBA
  	T.H.D.	< 0.5% @ 1 kHz (Dev.=32 kHz)
  	Frequency Response	60 Hz ~ 15 kHz (Overall system)
  	Squelch Control	"PiloTone & NoiseLock" dual-squelch circuits
  	Audio Output	610 mV rms
  	Power Supply	12 ~ 15 V DC
  	Dimensions (W × H × D)	75 × 35 × 141 mm
  	Weight	Approx. 126 g
  	Note	Refer to actual product in the event of product description discrepancy.
