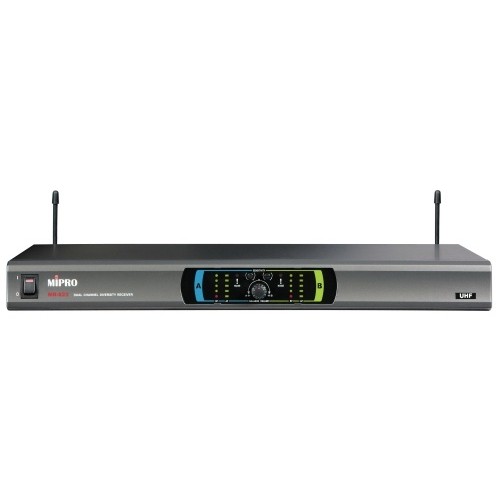

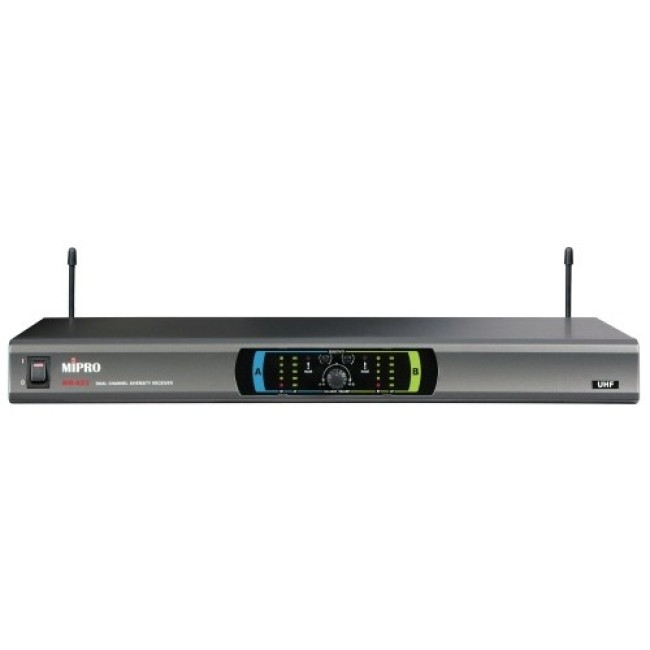

Mipro MR-823 Dual-Channel Diversity Receiver

Mipro MR-823 Dual-Channel Diversity Receiver

• Dual-Channel Diversity Receiver

Description

• CPU diversity technology ensures stable signal quality and avoids signal drop-out.
• PLL synthesized fixed frequency circuit for stability and effortless frequency setup.
• RF and audio level LED indicators.
• Adjustable ‘SQ’ for increased or decreased sensitivity level for increased reception range or interference management.
• Output level is accurately pre-adjusted to equal the microphone capsule sensitivity and ensures optimal performance.
•

• Specification

• Chassis	EIA Standard 19 " 1U metal chassis
  	Frequency Range	UHF 480 ~ 934 MHz
  	Oscillation Mode	PLL Synthesized fixed-frequency
  	Receiving Mode	Diversity receiving
  	Deviation	< ± 40 kHz
  	S/N Ratio	> 106 dB(A)
  	T.H.D.	< 0.5% @ 1 kHz
  	Frequency Response	50 Hz ~ 18 kHz
  	Max. Output Level	3-Level Switch: +10 dBV / 0 dBV / -6 dBV
  	Sensitivity	10 dBμV at S/N > 80 dB
  	Squelch	“PiloTone & NoiseLock” dual-squelch circuit
  	Power Supply	12 ~ 15V DC, 1A
  	Dimensions (W × H × D)	420 × 44 × 204 mm / 17 × 1.7 × 8.0 "
  	Net Weight	Approx. 1.7 kg / 3.7 lbs
  	Note	Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
