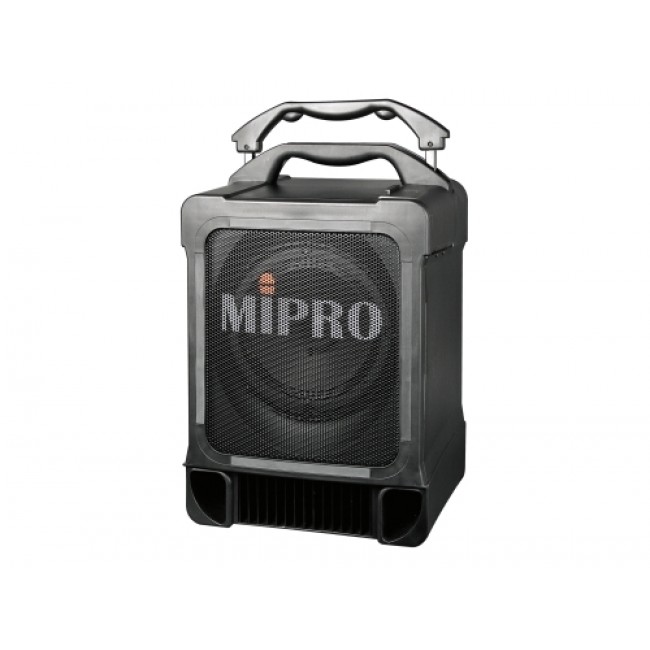

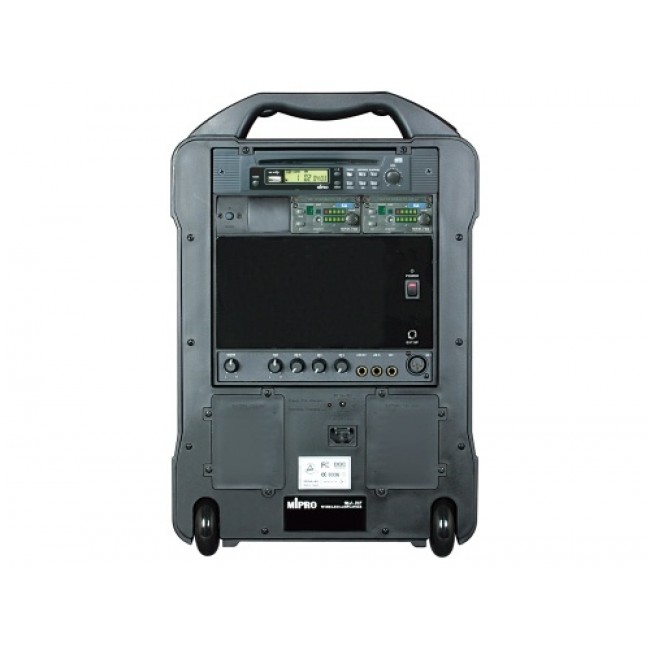

Mipro MA-705 Portable Wireless PA System

Mipro MA-705 Portable Wireless PA System

• MA-705 Portable Wireless PA System, MA-705 Passive Extension Speaker, SC-50 Storage Cover Bag.

• Since 1995, the one-piece molded enclosure and trolley MA-707 portable wireless PA has remained a market-leading system. Mass-produced and sold worldwide for 20 years as MIPRO ensures product design, craftsmanship and reliability are second to none.

  MA-707 is a versatile and rugged system that can be used indoors and outdoors and provides excellent full range music reproduction as well as quality intelligible speech. It offers an ideal public address solution for medium to large crowds.

  Ideal applications include:

  • Schools
  • Places of worship
  • Presentations, seminars and meetings
  • Shopping center & trade show presentations and promotions
  • Aerobic & fitness centers
  • Parades & fetes
  • Street performers
  • Park and recreational facilities
  • Emergency interventions
  • Weddings & funeral services
  • Public auctions




  MA705EXP Passive Extension Speaker


  To improve the spatial sound effect, various external, passive additional speakers are available for the models MA 808, MA 708, MA 707, MA 705 and MA-505. All additional speakers have a tripod flange and come with a 10 m connection cable.




  • Load capacity 70 watts (max.)
  • Same size and look as the active box
  • Connection to the active box MA 705 via the included jack-jack cable (6.35 mm) length: 10m
  • Stand flange

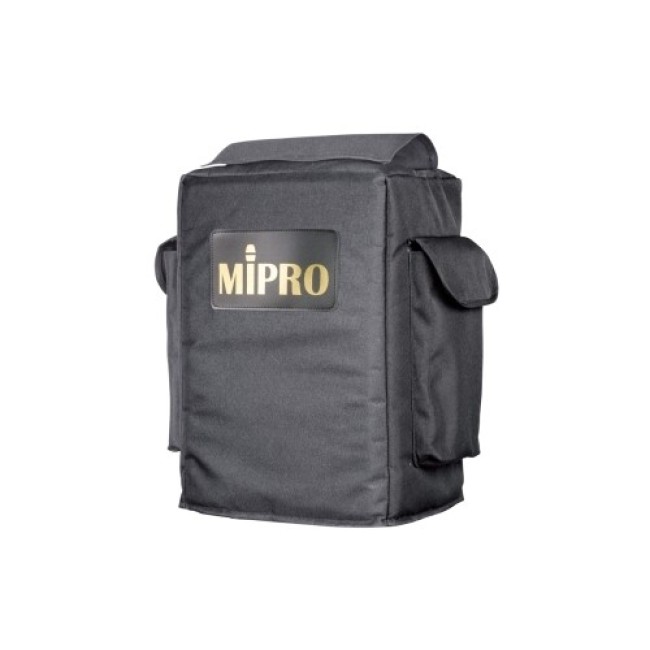

  MIPRO SC-50 Storage Cover Bag

  The MIPRO SC-50 is a protective carry and storage bag that includes pouches for transmitters and other accessories. The SC-50 is compatible for MA-505 and MA-705 wireless PA system.




  Portable PA
  	Max. Power Output	100 Watts
  	Amplifier	Class AB
  	Sensitivity	Typical: 98 dB | Maximum: 111 dB
  	T.H.D.	< 1%
  	Frequency Response	50 Hz ~ 18 kHz
  	Speaker	8 " full-range
  	Audio Inputs	Wired: XLR × 1, Ø 6.3 mm (1/4 ") × 1 Wireless: Up to 2 wireless microphones Audio Player: CDM-2 Line-In: Unbalanced Ø 6.3 mm (1/4 ") jack
  	Audio Output	Unbalanced Line Ø 6.3 mm (1/4 ") jack
  	Extension Speaker	Ø 6.3 mm (1/4 ") Phone jack
  	Volume	Master and other individual controls
  	Controls	Tone control
  	Storage	2 handheld or bodypack transmitters
  	Installation	Speaker stand, flat surface or retractable handle & wheels
  	Power Supply	AC: Built-in 100 ~ 240 V AC switching power supply (Max. Power Consumption: 120 W) DC & Battery: 24 ~ 32 V DC,12 V / 4.5 AH rechargeable gel cell battery (MB-70 × 2) or optional MB-80 × 2
  	Charge Time	8 hours (automatic charging management)
  	Standby Time	> 8 hours
  	Battery Indicator	Single LED indicator
  	Color	Black
  	Dimensions (W × H × D)	310 × 445 × 240 mm / 12.2 × 17.5 × 9.4 "
  	Weight	Approx. 14.8 kg / 32.5 lbs, batteries included
  	Wireless System (optional)
  	Receiver	MRM-70B︱MRM-70W︱MRM-80︱MRM-24︱MRM-58 Scan & ACT sync
  	Max. Receiver	Up to 2
  	Frequency Range	MRM-70B︱MRM-70W︱MRM-80: UHF 480 ~ 934 MHz (country dependent) MRM-24: 2.4 GHz MRM-58: 5.8 GHz
  	Preset Channels & Bandwidth	See Accessories - Receiver Modules
  	Transmitters	See Accessories - Receiver Modules
  	Microphones	MM-107︱MM-39︱MM-59 Wired Dynamic Microphone
  	Installation	Plug-in Module
  	Antenna	Built-in active dual antennas
  	Audio Player (optional)
  	Model	CDM-2
  	Installation	Plug-in Module
  	Note	Refer to actual product in the event of product description discrepancy.

• Features

• Robust enclosure, 100-watt portable PA system with 8" full-range speaker. Up to 2 UHF diversity receiver modules with 16 auto-scannable frequencies and built-in active an-tenna prevents accidental antenna breakage. Plug-&-play CD/MP3 player. Retractable handle and rugged wheels make it amazingly easy to transport. Built-in storage compartment for 2 handhelds or bodypack transmitters. Built-in AC switching power supply for universal usage. Can be powered via AC power, battery, or direct DC. Weighs only 14 kgs | 32 lbs. fully loaded
