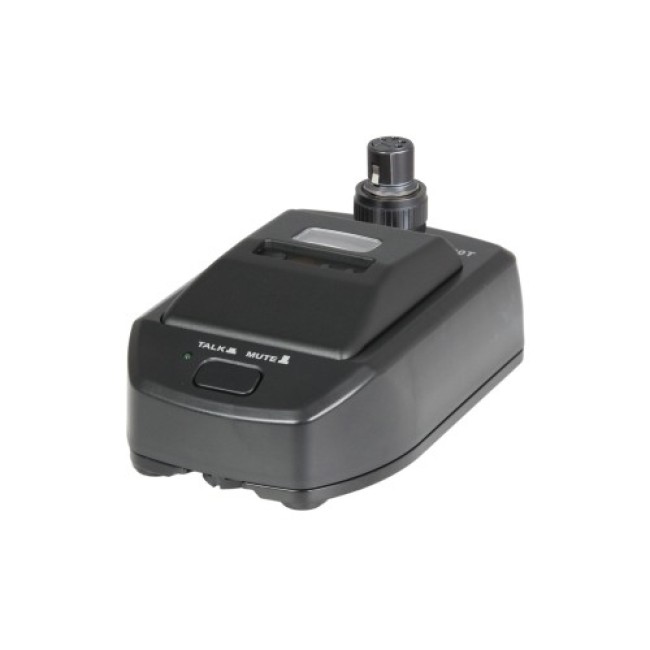

Mipro BC-100T UHF Wireless Conference Microphone Base

Mipro BC-100T UHF Wireless Conference Microphone Base

• BC-100T encloses the ACT-32TC transmitter PCB for wireless transmission and can also connect directly with MM-206 / MM-205 / MM-204 gooseneck microphone.
• Description

• BC-100T encloses the ACT-32TC transmitter PCB for wireless transmission and can also connect directly with MM-206 / MM-205 / MM-204 gooseneck microphone. For wired transmission, the output jack requires phantom power from the mixer. For wireless transmission, the operational controls are the same as the ACT-T Series bodypack transmitters. A built-in ICR 18500 rechargeable lithium-ion battery can be charged by an external charger or simply replace with another spare battery. A TALK / MUTE button with a LED indicates TALK (LED on) or MUTE (LED off).




  Specification

  Built-in Transmitter : ACT-32TC (UHF Analog)

  Receiver : ACT-300/500 Series

  Input Jack : 4 pin XLR female

  Output Jack : Balanced XLR male

  Microphones : MM-206 / MM-205 / MM-204 gooseneck microphone

  TALK / MUTE Button : Mechanical PUSH-HOLD switch, with LED status indicator.

  Power Supply : A built-in ICR 18500 rechargeable lithium battery and the charging circuit.

  Phantom Power : External 24 ~ 48 V DC phantom power is required.

  Color : Black

  Dimensions : 100 × 78 × 150 mm (W×H×D)

  Net Weight : Approx. 710 g
