Mipro AD-12 Passive Antenna Divider | Combiner

Passive Antenna Divider | Combiner
Model :AD12
SKU :AD12
  0 reviews / Write a review
AED 105.00
Rate inclusive of VAT
Out of stock, but you can still place a backorder
Backorder
Order Now
  •  Condition: New

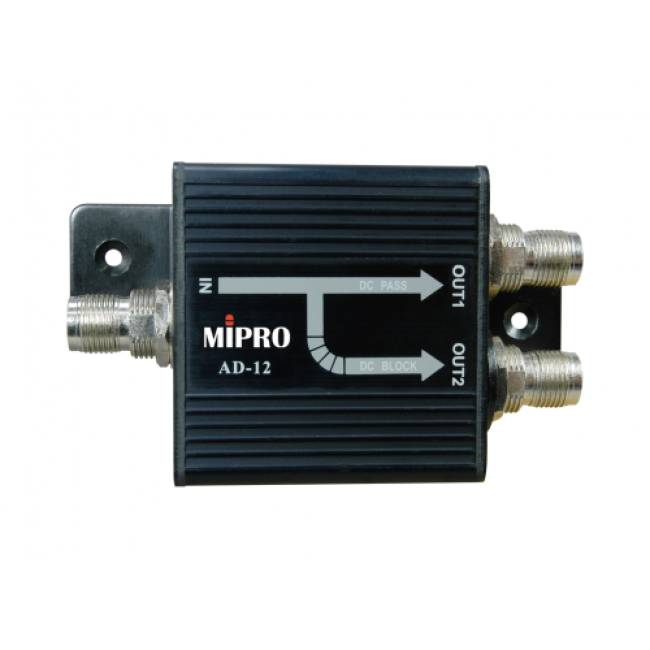

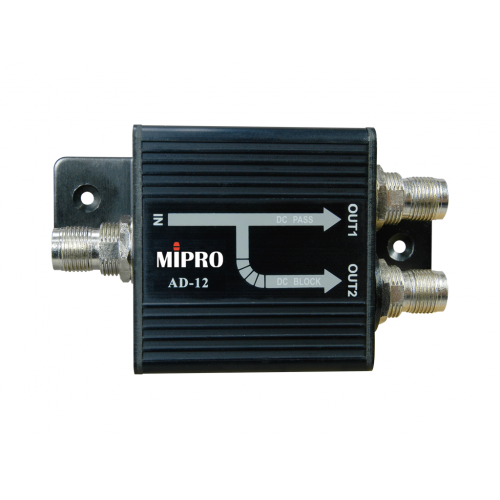

Mipro AD-12 Passive Antenna Divider | Combiner

  • Passive Antenna Divider | Combiner
  • Description
  • The AD-12 was introduced in 2005 and can either divide a RF signal into 2 signal outputs or combine 2 signals into 1 signal output. Simultaneously, it transmits bias voltage to external boosters.
  • It is a required device for antenna system installation.
  • The AD-12 adapts an isolated grounding design to avoid power noise from multi-receiver operation.

  • Specification
Frequency RangeUHF 470 ~ 1000 MHz
 GainAttenuation 3.5 dB (typ.)
 Max. RF Input Power30 dBm (1 W)
 Isolation20 dB (typ.)
 Max. Volt / Current50 V DC / 1.5 A
 Input / Output ConnectorsTNC female (1-input, 2-output)
 System Impedance50 Ω
 Dimensions (W × H × D)90.3 × 25 × 55.4 mm / 3.5 × 1 × 2.2 "
 Net WeightApprox. 105 g / 3.7 oz
 NoteRefer to actual product in the event of product description discrepancy.
