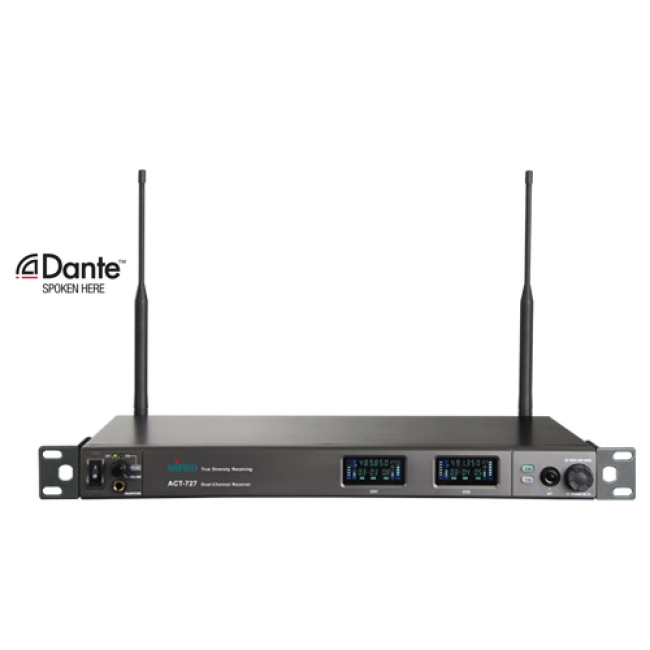

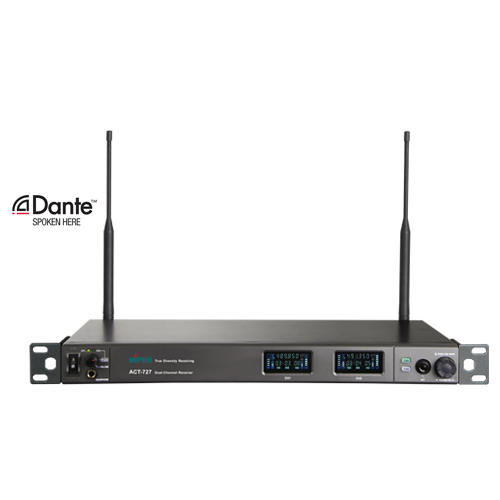

Mipro ACT-727 1U Dual-Channel UHF Wideband Receiver

Mipro ACT-727 1U Dual-Channel UHF Wideband Receiver

• Dual-Channel UHF Wideband Receiver
• Description
• 1U metal chassis, equipped with a new VFD screen, monitor headphone jack, a rotary control knob and buttons, and optional Dante on the rear panel. The VFD screen has automatic bright or dim displays to identify “Working” and “Standby” mode. Operation and display mode is consistent with other series.
• Designed with MIPRO’s most reliable 72 MHz wideband high dynamic RF receiving circuit.
• Advanced true diversity receiving ensures long-distance and stable reception without signal dropout.
• Industry’s only "PiloTone & NoiseLock" circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
• MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
• There are 7 preset groups with a total of 224 pre-saved frequencies. Group 1 & 2 each allows 16 channels of interference-free operation without any restriction. Group 3 ~ 6 each allows 48 channels of interference-free operation with restriction applied. Group 7 user-defined group allows users to choose and save up to 16 channels from 2,881 available frequencies.
• Each channel has separate AF signal output and presets the output level equal to the sensitivity of the microphone capsule. Switchable three levels ensure the microphone to operate within proper sensitivity and dynamic range, free from distortion.
• The antenna TNC female connectors provide bias for the MIPRO antenna systems to increase the receiving range and improve the signal stability.
• Optional MIPRO RCS2.Net software allows real-time network remote-controlling and monitoring of up to 64 channels. Additional FSA compatible channels calculator software allows users to manually set compatible channels of any frequency band.
• External 100~240V AC switching power supply.
• Designed and made in Taiwan ensures high quality and value.
•

• Specification

• Model	ACT-727
  Name	1U Dual-Channel UHF Wideband Receiver
  Chassis	EIA-Standard 19″ 1U metal chassis
  Display	A newly designed color VFD
  Frequency Range	UHF 480 ~ 934 MHz (country dependent)
  Bandwidth	72 MHz
  Receiving Mode	True diversity receiving
  Sensitivity	6 dBμV @ S/N > 80 dB
  Frequency Response	50 Hz ~ 18 kHz
  Dynamic Range	> 110 dBA
  Audio Output	Balanced: +16dB / 0dB / -6dB, Unbalanced: +10dB / 0dB / -6dB
  Monitor Output	Monitor headphone jack with volume control
  Dante or AVB	Optional
  PC Interface	USB interface. MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (Sold Separately)
  Antenna	Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.
  Power Supply	External 100~240V AC switching power supply
  Dimensions	420 × 44 × 230 mm (W × H × D)
  Weight	Approx. 2.2 kg
  Note	Refer to the actual product in the event of product discrepancy.
