Mipro ACT-312B Dual-Channel Diversity Receiver/ACT-32HT Handheld Transmitter

• Mipro ACT-312B Receiver , ACT-32 HT Transmitter and Receiver.

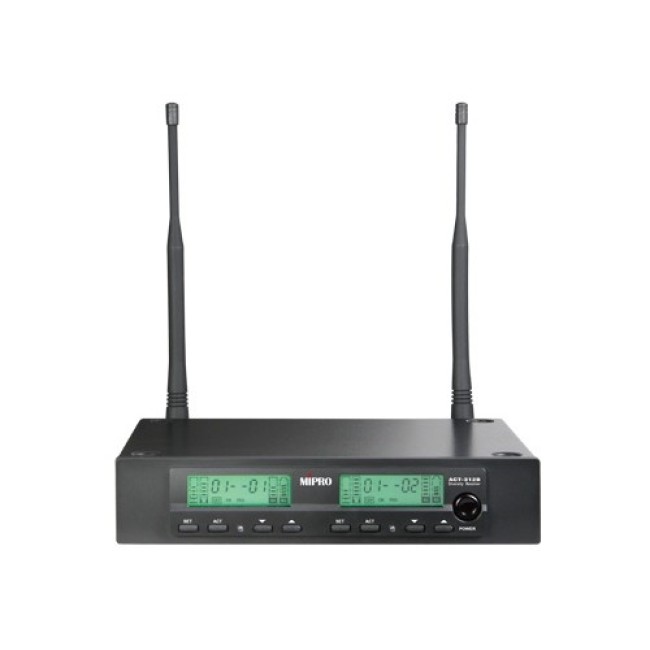

• ACT-312B Dual-Channel Diversity Receiver



  • CPU-controlled diversity receiving. "PiloTone & NoiseLock" dual-squelch circuit eliminates signal drop-out and minimizes interference.
  • All controls are intuitive and easily operated via electronic buttons to prevent accidental operation.
  • Industry’s only RF interference warning indicator for proper adjustments of the SQ level. Increase sensitivity to extend receiving range; decrease the sensitivity to reduce interference.
  • Auto Scan function allows quick search for an interference-free working channel. World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
  • Output level is pre-adjusted to equal the microphone capsule’s sensitivity. Switchable output levels for the best sound quality options.
  • Receiver provides bias voltage for MIPRO antenna systems to enhance reception range and signal stability.
  •

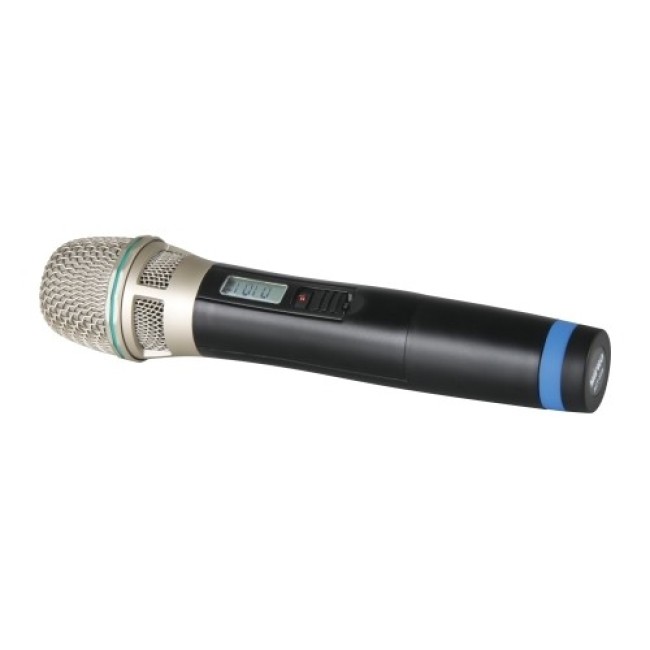

  • ACT-32H Handheld Transmitter Innovatively designed metal housing in MIPRO’s distinctive aesthetic and ergonomic style. Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers. The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound. The upper grille is easy to detach for cleaning and hygiene practice. Patented capsule suspension design virtually eliminates vibration and handling noises. Built-in high-efficiency antenna. Backlit LCD displays all operational parameter information. World’s first ACT™ function provides precise and rapid frequency

    ACT-32T UHF Bodypack Transmitter
    • Compact and lightweight rugged plastic housing for easy to wear.
    • On top of the housing is equipped with an antenna, mute button and mini XLR connector. The Mini XLR audio input connector accepts either a screw-lock or a TA4F quick-lock plug. A remote-control mute jack is for easy activation of the mute function.
    • An LCD on the panel displays the working channel, battery status and operating information.
    • Powered by two AA alkaline batteries.
    • Innovatively designed battery cover allows easy access to operate buttons and prevent accidental operation.
    • High/low impedance for microphone or guitar / line inputs. Five selectable gain settings with Auto Limiter to prevent distortion.
    •


    • Specification

      ACT-312B Dual-Channel Diversity Receiver

      	Channel	Dual
      	Chassis	EIA Standard 19 " 1/2U metal chassis
      	Display	Green backlit LCD with automatic bright (working) and dim (standby) displays during performance.
      	Frequency Range	UHF 480 ~ 934 MHz (country dependent)
      	Bandwidth	24 MHz
      	Deviation	< ± 40 kHz
      	Receiving Mode	CPU-controlled diversity receiving
      	Sensitivity	10 dBμV at S/N > 80 dB
      	S/N Ratio	> 106 dB(A)
      	T.H.D.	< 0.5% @ 1 kHz
      	Frequency Response	50 Hz ~ 18 kHz
      	Squelch	“PiloTone & NoiseLock” dual-squelch circuit
      	Audio Output	Balanced XLR & Unbalanced Ø 6.3 mm
      	Max. Output Level	Balanced: 0 dBV ; Unbalanced: +10 dBV / 0 dBV
      	Power Supply	12 ~ 15 V DC, 1A
      	Dimensions (W × H × D)	210 × 44 × 180 mm / 8.3 × 1.7 × 7.1 "
      	Net Weight	Approx. 0.95 kg / 2.1 lbs
      	Note	Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.

      ACT-32H Handheld Transmitter

      	Housing	Black-color rugged plastic housing
      	Display	LCD displays all operational parameter information.
      	Frequency Range	UHF 480 ~ 934 MHz (country dependent) Egypt: 5D (597-608 MHz)
      	Bandwidth	24 MHz
      	RF Output Power	10 ~ 30 mW (country dependent)
      	Deviation	< ± 40 kHz
      	Spurious Emissions	< -55 dBc
      	Gain	0 dB = input microphone sensitivity. High-fidelity modulation circuit sustains high SPL without distortion.
      	Dimensions (Ø × L)	51 × 234 mm / 2 × 9.2 "
      	Net Weight	Approx. 251 g / 8.9 oz
      	Battery	2 × AA alkaline
      	Operating Time	Min. 12 hours
      	Note	Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
