Mipro ACT-311B Single-Channel System

Mipro ACT-311B Single-Channel System

• Single channel radio microphone receiver with hand held transmitter. ACT 3B Series.
• Description

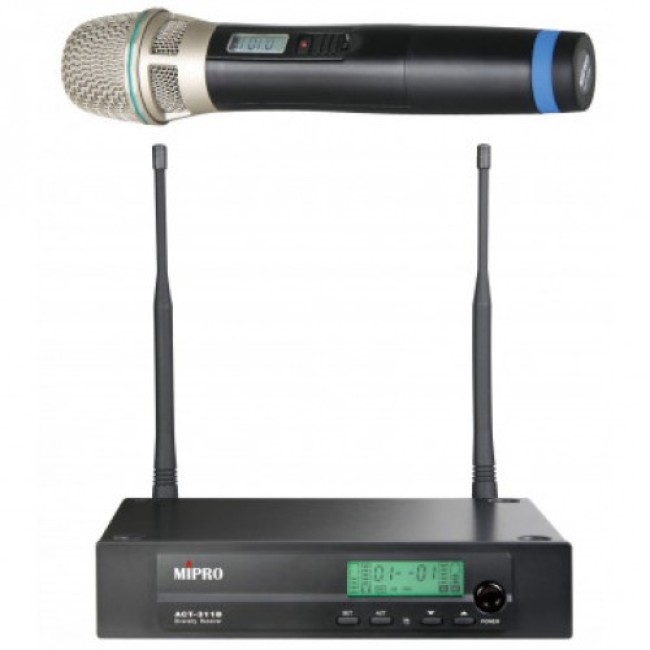

• The Mipro ACT-311B / ACT-32H wireless microphone system comprises of one ACT-311B single channel UHF radio mic receiver and one ACT-32H hand held wireless microphone transmitter.

  The system operates on channel 38 - licence required.

  Automatic Channel Targeting (ACT) feature makes system set up extremely simple by matching and synchronising transmitters and receiver at the press of a button.

  1U high, half rack width - rack mountable using the optional FB-71 or FB-72 rack mount ears - see related products.

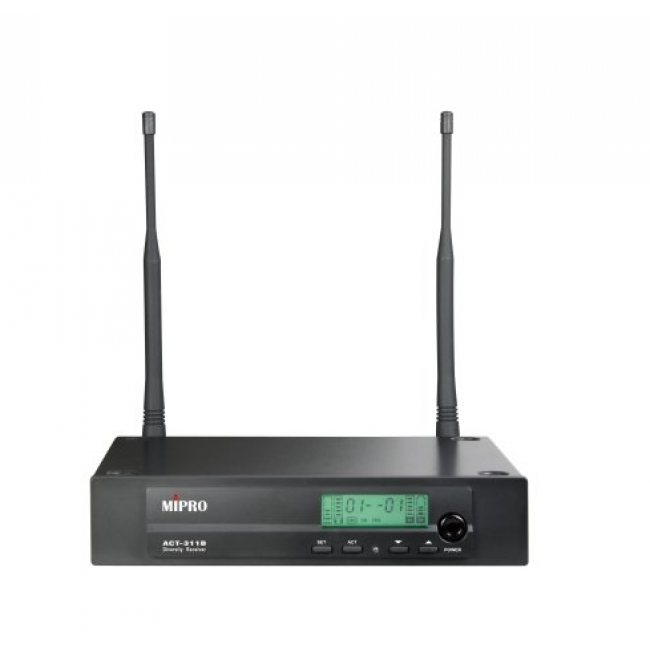

  • EIA standard 1/2U metal rack-mountable receiver.
  • Stable PLL circuit. Auto Scan function allows quick search for an interference-free working channel from 112 preset channels under 10 groups. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies.
  • World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
  • Advanced diversity technology for optimum reception range reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
  • Backlit LCD is lit in green indicates the receiver is in working mode when it detects an incoming signal or buttons are touched. The display dims automatically when the receiver is idle for about 10 seconds.
  • Balanced XLR / unbalanced 1/4 " audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers.
  • Industry’s only RF interference warning indicator for proper adjustments of the SQ level.
  • Increase sensitivity to extend receiving range; decrease the sensitivity to reduce interference.
  • Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.
  • DC input jack accepts 12~15V power supply.

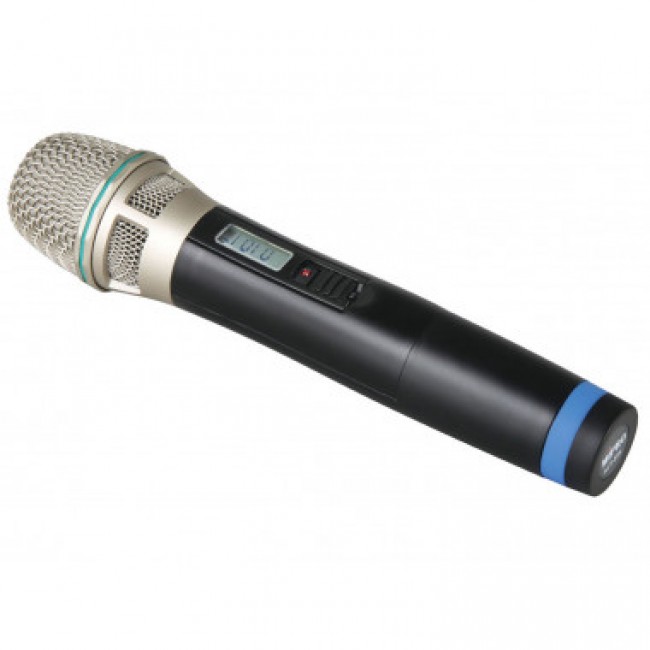

  The Mipro ACT-32H handheld wireless microphone transmitter has a cardioid condenser pick-up.

  • Robust, lightweight plastic housing.
  • The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound.
  • Premium condenser capsules exhibit high fidelity, wide dynamic range, fast transient responses, good feedback rejection, accurate sound image characteristics, transparent sound quality and withstand maximum SPL.
  • Reversible end-cap allows power on/off switch being locked to avoid accidental power-off during performance.
  • Impact-resistant battery compartment holds 2 AA batteries.
  • Backlit LCD displays various parameters and status.
  • Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function.
  • Patented “built-in” antenna design.
  • Interchangeable coloured rings for microphone channel identification on stage.
  • High-efficiency circuitry design provides more than 16 hours of operation from 2 AA batteries (depending on the battery quality).
  •

  • Specification

  • 	Channel	Single
    	Chassis	EIA Standard 19 " 1/2U metal chassis
    	Display	Green backlit LCD with automatic bright (working) and dim (standby) displays during performance.
    	Frequency Range	UHF 480 ~ 934 MHz (country dependent)
    	Bandwidth	24 MHz
    	Deviation	< ± 40 kHz
    	Receiving Mode	CPU-controlled diversity receiving
    	Sensitivity	10 dBμV at S/N > 80 dB
    	S/N Ratio	> 106 dB(A)
    	T.H.D.	< 0.5% @ 1 kHz
    	Frequency Response	50 Hz ~ 18 kHz
    	Squelch	“PiloTone & NoiseLock” dual-squelch circuit
    	Audio Output	Balanced XLR & Unbalanced Ø 6.3 mm
    	Max. Output Level	Balanced: 0 dBV ; Unbalanced: +10 dBV / 0 dBV
    	Power Supply	12 ~ 15 V DC, 1A
    	Dimensions (W × H × D)	210 × 44 × 180 mm / 8.3 × 1.7 × 7.1 "
    	Net Weight	Approx. 0.8 kg / 1.8 lbs
    	Note	Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.

  •
