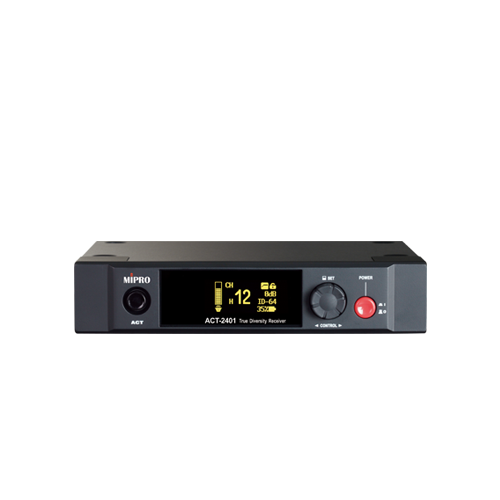

Mipro ACT-2401 2.4 GHz 1/2U Single-Channel Digital Receiver

Mipro ACT-2401 2.4 GHz 1/2U Single-Channel Digital Receiver

• ACT-2401 is single-channel in 1/2U metal chassis with a built-in high-efficiency antenna in the front panel.
• Description
•

• ACT-2401 is single-channel in 1/2U metal chassis with a built-in high-efficiency antenna in the front panel.
• Designed with the same front panel with a graphic OLED screen that provides a larger field of view and the same operating method in MIPRO style for digital models.
• Stable digital modulation circuitry. 12 channels of interference-free operation are located in a single frequency band.
• Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.
• The precisely designed PCB is secured in a sturdy case for ultra-low malfunction.
•

• Specification

• Model	ACT-2401
  Name	2.4 GHz 1/2U Single-Channel Digital Receiver
  Channel	Single
  Chassis	EIA Standard 1/2U metal black case
  Antenna	Built-in front panel
  Display	Graphic OLED
  Frequency Range	ISM 2.4 GHz band (2,400~2,483.5 MHz)
  Preset Frequency	12
  Receiving Mode	Dual-tuner true diversity receiving
  Channel Set-up	ACT Sync
  Sample Rate	24-bit / 44.1 kHz
  Frequency Response	20 Hz ~ 20 kHz
  Latency	< 4.0 ms
  Dynamic Range	117 dBA
  Output Connectors	Balanced XLR & Unbalanced Ø 6.3 mm, -10 ~ +20 dB adjustable range.
  Power Supply	External 100~240V AC switching power supply
  Dimensions	210 × 44 × 180 mm (W × H × D)
  Weight	Approx. 0.75 kg
  Note	Refer to the actual product in the event of product discrepancy.
