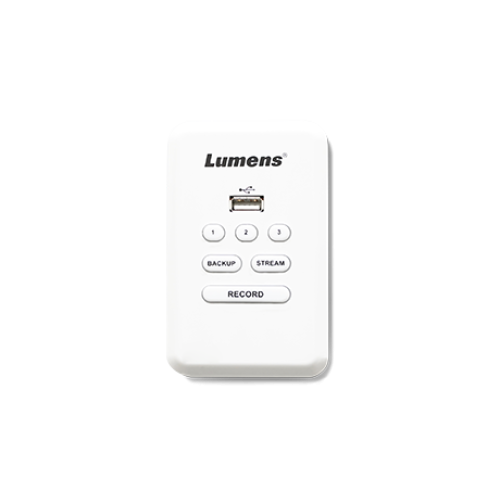

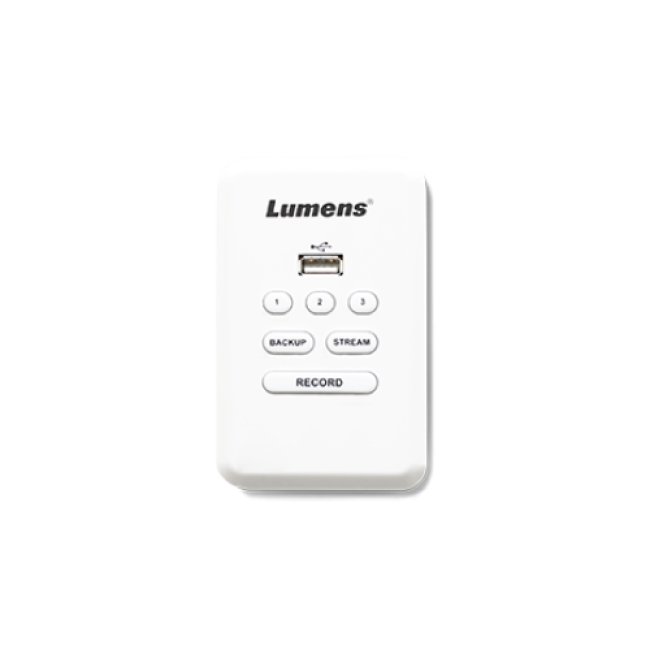

Lumens LC-RC01U - Remote Control Panel for LC200

Lumens LC-RC01U - Remote Control Panel for LC200

• 6 LED buttons (Record, Stream, Backup, Marco 1~3), 1 female USB 2.0 Type A port, Maximum extension distance up to 30 meters using Cat 5e cable.
• Lumens LC-RC01 is a wall plate remote control panel for the LC200. The wall panel is capable to select features such as live streaming, recording, and video file saving. The panel provides three macro functions that can remotely switch the scene and control the cameras preset. The LC-RC01 can be extended to 30 meters through a Cat 5e cable. The LC-RC01 offers greater flexibility for operating the LC200.

• Model: LC-RC01U Specifications
  Description	Remote Control Panel for LC200
  Buttom	6 LED buttons (Record, Stream, Backup , Marco 1~3)
  USB port	1 female USB 2.0 Type A, support USB flash drive
  Extend
  Cable type	Cat 5e / Cat 6 and above
  Maximum extension distance	30 meter (98 ft)
  Mounting
  Mounting	Mounts to standard 1-gang US enclosures or to surfaces with included mud ring
  General
  Power consumption	6W
  Temperature	Storage: -20 ~ + 70 °C | Operating: 0 to +40 °C
  Humidity	10% to 90%
  Dimensions	115mm (H) x 74mm (W) x 43mm (D)
  Weight	0.11 Kg
