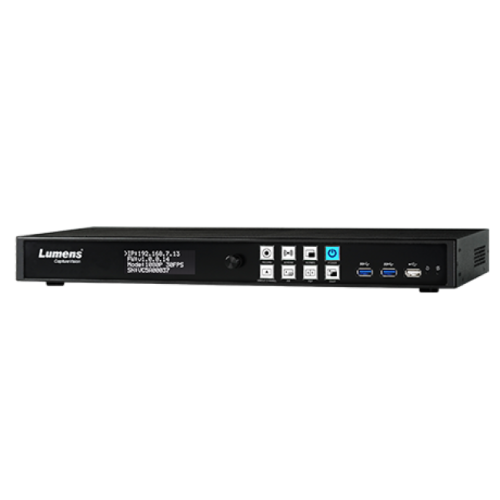

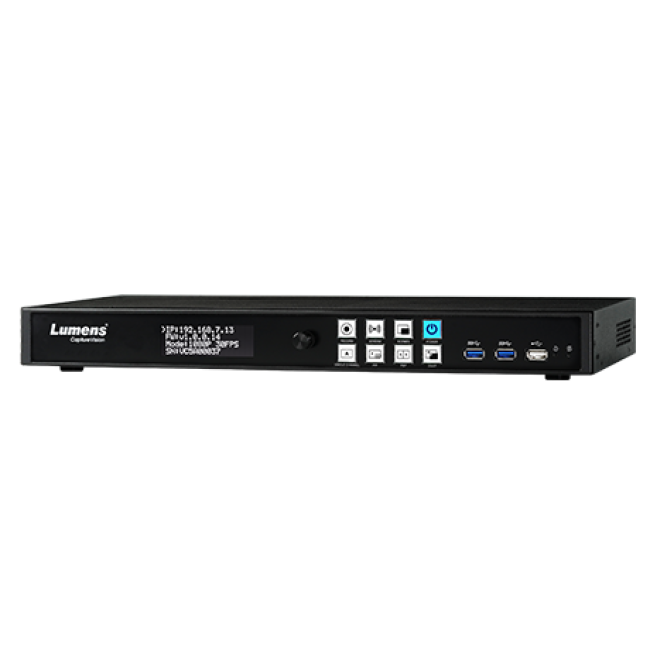

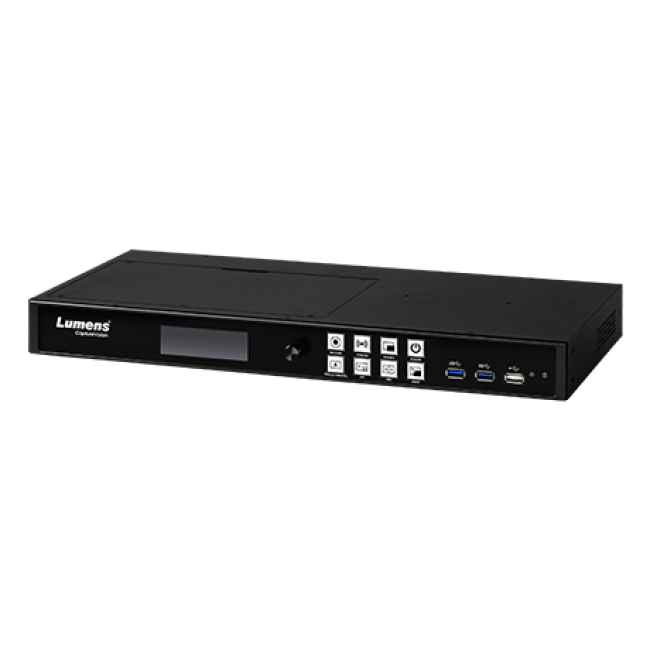

Lumens LC100 CaptureVision System

Lumens LC100 CaptureVision System

• 2CH HD Recorder and Streaming Media Processor
• 2-Channel AV Source Processing
• Simultaneous Recording and Streaming
• HDMI, SDI, RTSP, USB source inputs
• XLR with Phantom power supported
• Built-in 2TB HDD storage*
• Remote Control Panel (Optional)
• 5-Year Warranty

• Onboard GUI Director

• Live control is incorporated into the device. Connect an HDMI screen to the LC100 to access the intuitive GUI. Sessions can be produced live or scheduled in advance.







  Live Pre-defined Scenes for Switching


  Build layout scenes that incorporate a variety of visual elements including split screen video, picture-in-picture, title/logo overlays, and background images. Activate and change layouts with the click of a mouse.

  Program & ISO Recording

  The LC100 records the mixed program-out video and captures two video inputs with independent audio. This simplifies media archiving and post-production.








































  Deployment Tool for remote central management

  The Lumens deployment software enables control, management, and administration of multiple LC100 units on the network. Administrators can remotely monitor device status, saving time and reducing costs.

  Intermission Scene and Chapter Marker

  Need a break time during the streaming session? Hit the coffee mark to display the break time page. At the same time, set a chapter mark to instantly jump to a particular scene during playback.







  • Specs

  Number / Signal

  2* HDMI
  2* 3G-SDI

  Connection

  Female HDMI Type-A / 3G-SDI

  Resolution Range

  HDMI Input 1: 720p~2160p 60fps
  Others: 720p~1080p 60fps

  IP Source / USB Camera

  Lumens IP PTZ / Box Camera
  RTSP Source (H.264 1080p 60/30fps)
  USB Camera (MJPEG 1080p 30fps)

  Video Compression

  H.264 / AVC 4:2:0 8bit color
  Encoding Profile: High, Main, Baseline

  Bitrate

  200 kbps to 10 Mbps

  Number / Signal

  3* H.264 / AVC Digital Video over Ethernet
  2* HDMI Digital Video
  1* HDMI Pass-through (Up to 4K)

  Scaled Resolution

  1080p

  Frame Rate

  30 / 60 fps

  Internal Storage

  2TB HDD

  External Storage

  4* USB 3.0 Port

  File Type

  H.264 in an MP4 Container, JPEG

  Resolution

  360p / 720p / 1080p

  Frame Rate

  Max. 1080p 60/30 fps

  Number / Signal

  1* Line In (Stereo Unbalanced Audio, 3.5mm Phone Jack)
  2* Combo (XLR / TRS, Balanced Audio,
  Line in/ Mic in, Support +48V Phanton Power)
  IP Audio Source (RTSP, 16K/44.1K/48K)
  Support USB Audio (UAC)

  Number / Signal

  1* Stereo, Unbalanced 3.5mm Phone Jack
  2* Stereo, Digital De-embedded Audio from HDMI

  USB

  1* USB 2.0 Type A
  4* USB 3.0 Type A
  Support USB Storage, USB Camera, USB Mic
  USB Mouse, Keyboard, HID Touch Display

  Serial Control

  RS-232 / RS-485 Port

  Ethernet Host Port

  1* Female RJ-45
  10/1001000 Base-T High / Full Duplex

  Streaming Protocol

  Pull: RTSP
  Push: RTMP / RTMPS / MPEG-TS / SRT
  TCP / UDP / HTTP
  DHCP Client

  Support IP Sources

  Lumens IP Camera / RTSP

  Scenes Switch

  Yes, preset for layout, background, and overlay

  Layout Switch

  Yes ( Single, PIP, and PBP)

  Background Switch

  Yes

  &
