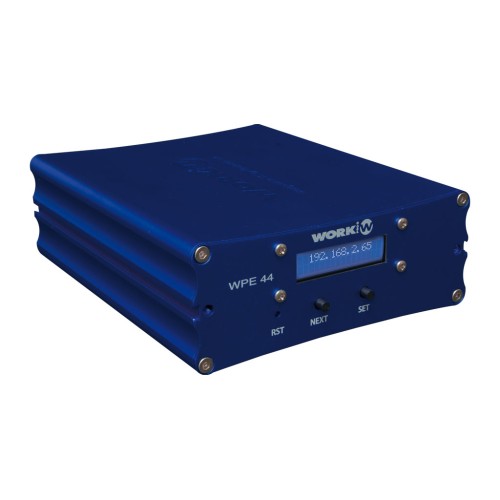

Equipson Work WPE-44 Digital Audio Processor

Equipson Work WPE-44 Digital Audio Processor

Description

WPE 44 is a 4 input, 4 output digital audio signal processor with external control capability. Its design and compact format make it perfect for use by audiovisual integrators and fixed installations. The device has balanced inputs and outputs with 3-contact Euroblock connectors to provide them with greater immunity against electromagnetic interference. The external control of this device is carried out thanks to its Ethernet connectivity, which can be done through the dedicated WorkCAD3 software or through OSC commands by third-party devices.

FEATURES

• 4 In / 4 Out.
• Control software WorkCad 3.
• Control via OSC commands.
•

• Specification
•


• Audio input	4 balanced (Euroblock 3 pins)
  Processing per input channel	4 filters, Gain, Mute, Reverse polarity
  Input Sensitvity	14 dBu (balanced) (3.88 Vrms)
  Audio Output	4 balanced (Euroblock 3 pins)
  Output channel processing	15 filters, 2 crossover filters (High pass, Low Pass), Input sum weighted matrix, Delay up to 8.19 ms, Compressor / Limiter / Noise Gate
  Output sensitivity	+10 dBu (balanced) (2.45 Vrms)
  S/N ratio	> 100 dB
  THD+N	< 0.01 %
  Bandwidth	20 Hz - 24000 Hz
  Sampling frecuency	48000 Hz
  Filter types	Low pass, High pass, Low Shelving, High Shelving, Band pass, Peak, Notch and All pass

  No. Memories	8
  Control protocols	OSC over UDP and RUDP
  Network Ports	UDP 9000 / RUDP 9002
  Ethernet	100 base TX
  Includded accessories	Wings for flat surface installation
  Compatible accessories	BL AR 19 (4 device in 1 rack unit installation accessory)
  Power supply	24 Vdc / 500 mA (Source not included), PoE Class 0 802.3af
  Consumption	3.6 W
  Dimensions	109 × 133.7 × 40.45 mm
  Weight	360 g
