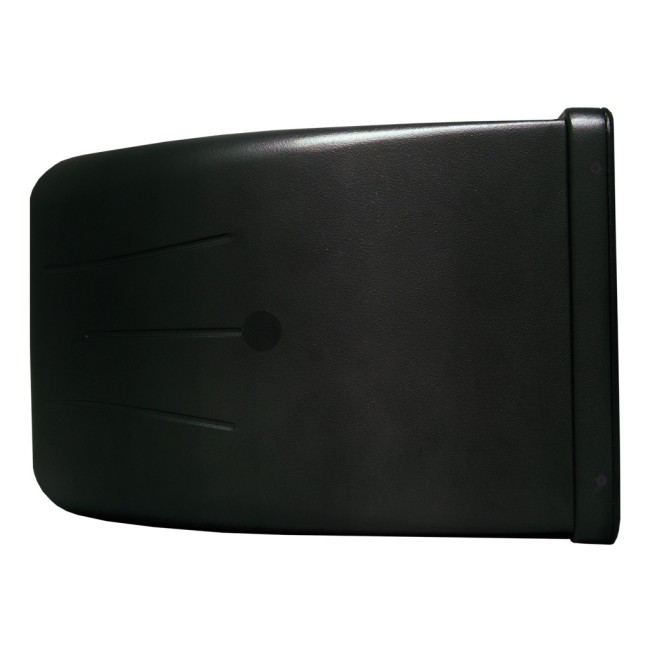

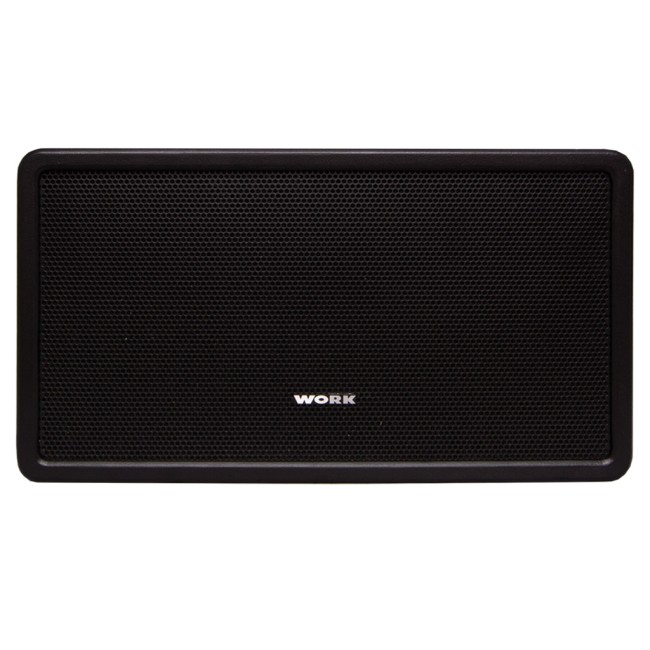

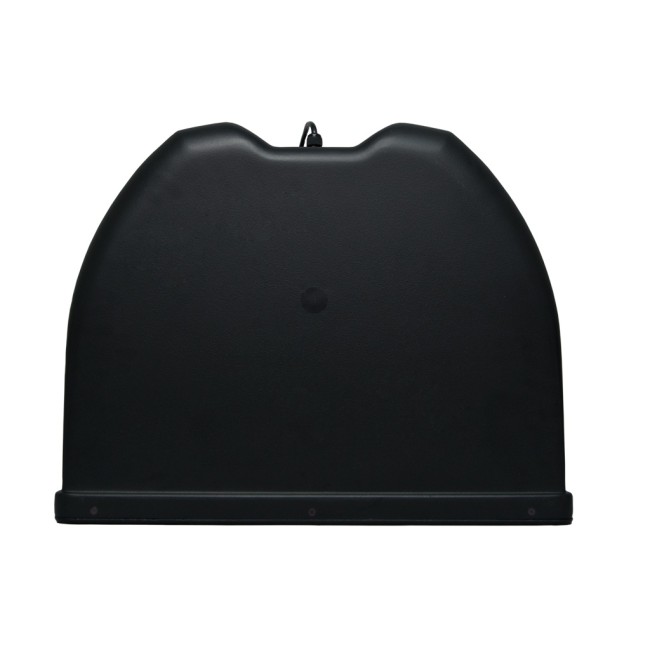

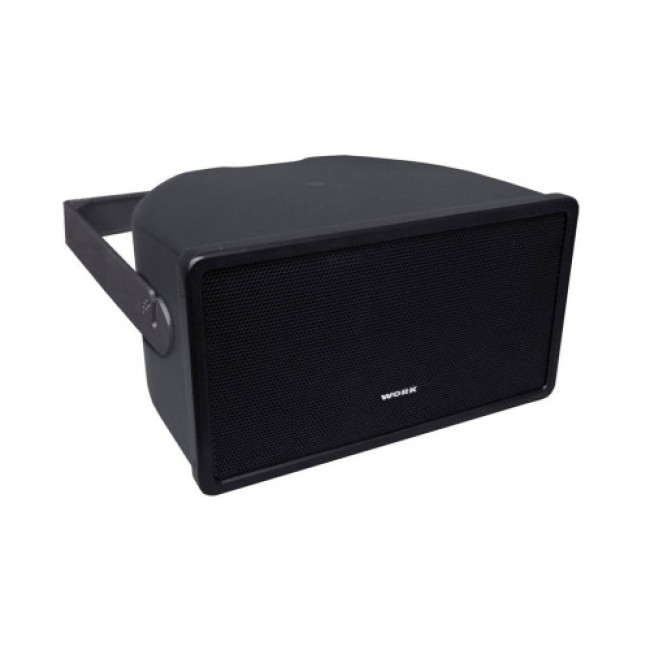

Equipson Work WFS 10 CX Outdoor Sound Projector

Equipson Work WFS 10 CX Outdoor Sound Projector

• This audio projector has been designed for outdoor appliances. It incorporates a 10" coaxial transducer and a 1" compression driver.
• Description

• This audio projector has been designed for outdoor appliances. It incorporates a 10" coaxial transducer and a 1" compression driver.It elevate IP range (IP 65) makes it very suitable for sports facilities, entertainment complexes, etc.Its 90ºx90º directivity in most of the band, making easier the contractors job designing an installation with the adequate audio dispersion. Its 2 connectivity modes (low impedance 8 Ohm and 100V line) allows to set the devices to several acoustic solutions.


  WFS 10 CX incorporates the WSTB 10 H for an easy and fast installation.

  Description




  Type	Passive audio projector. 2 ways
  Low Impedance Power	150 W RMS
  L100V Power	120 W
  Nominal Impedance	8 Ohm
  LF Transducer	10" Woofer
  HF Transducer	1" Compression driver
  Sensitivity (1W @ 1m)	104 dB
  SPL Max	126 dB / 131 dB peak
  Coverage Angle (H x V)	90º x 90º (500 Hz - 4 KHz)

  Frequency Range	89 Hz - 20.5 KHz
  HPF filter recommended	72 Hz
  Enclosure material	Fiberglass
  Grill	Metal
  Inserts / Rigging	Installation bracket WSTB 10 V and WSTB 10 H
  Colour	Black or white
  IP Protection	IP 65
