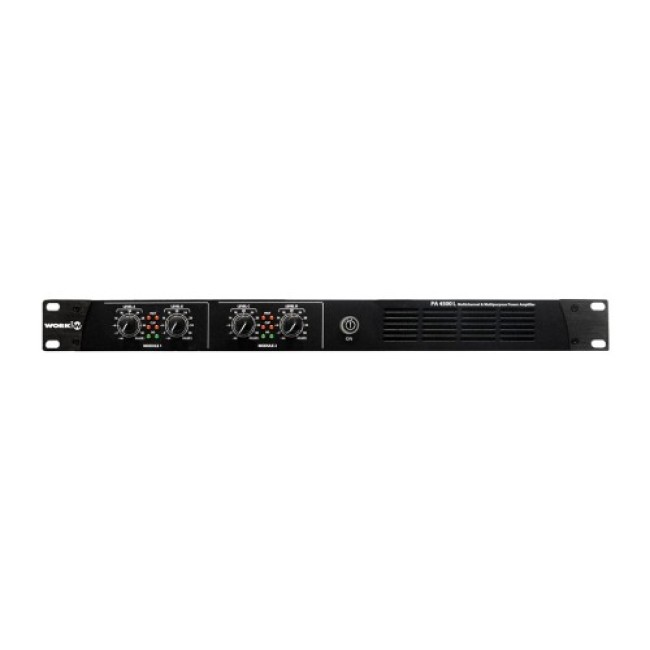

Equipson Work PA-4500 L Power Amplifier

Equipson Work PA-4500 L Power Amplifier

• Amplifier 4 x 500 W @ L70 / 100V.

• PA 4500 L amplifier offers 4 class D channels with 500 W per output. It can work both in 70V and 100V line (selectable through dip-switches). Each channel has its own volume control and LED indicators (signal, clip, and protect). PA 4500 L integrates various protections such as short circuit, thermal, ultrasonic and RF. Its inputs and outputs are connected by Euroblock connectors and it has dimensions of 1 HU rack 19''.

  FEATURES

  • Switch mode power supply.
  • 70 / 100V operation (selectable).
  • Volume control on each channel.
  • 1 HU rack 19 inch.
  •

  • Specification

  • Type	70/100 V line
    Power	4 x 500 W
    Input Sensitvity	1V (±0.1V)
    Input Impedance	20 KOhm (balanced) 10 KOhm (unbalanced)
    Frequency Response	100 Hz - 15 kHz
    Gain	40 dB
    THD+N	< 0.1%
    S/N ratio	> 95 dB
    Damping Factor	> 200

    Crosstalk	> 70 dB
    Connectors	INPUT and OUTPUT: Euroblock
    Protections	Short circuit, open circuit, overtemperature, ultrasonic and RF
    Power supply	AC 110-240V, 50/60 Hz
    Consumption	2000 W
    Dimensions	483 x 44 x 460 mm
    Weight	5.1 Kg
