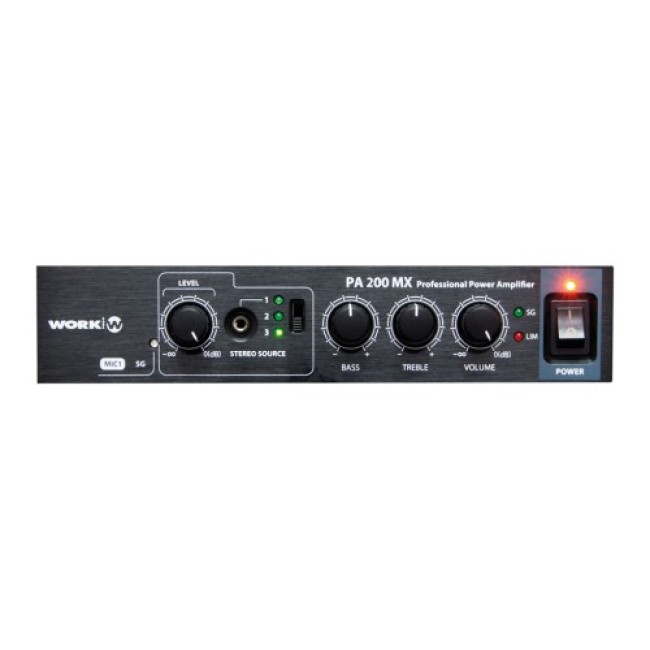

Equipson Work PA-200 MX Power Amplifier

Equipson Work PA-200 MX Power Amplifier

• Amplifier 2 x 100W @ 8/16 Ohm, 200W L70 / 100V.

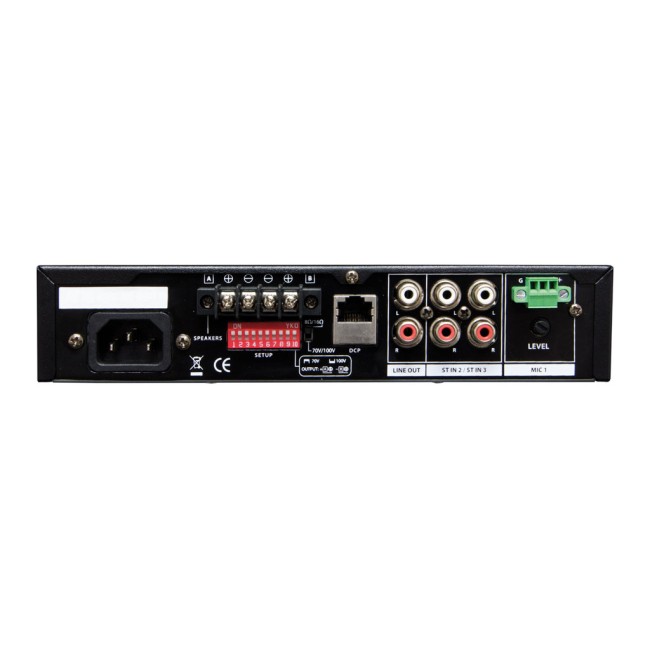

• PA 200 MX is a 200 W amplifier for installation, which can work in low impedance or in 70/100 V line. It incorporates 3 LINE inputs (LINE 1 with BLUETOOTH functionality) with selector, volume, and 2 tone controls. It also has a microphone input with Euroblock connector. The rear panel has a dipswitch selector that allows selecting the operating mode (feedback suppression, microphone gain, microphone priority, stereo / mono input, low impedance or L70 / 100V), and an RJ45 connection that supports RS485 commands. from an external device.

  FEATURES

  • Switch mode power supply.
  • 3 LINE input with selector and own volume.
  • Bluetooth.
  • RJ45 (RS485 commands).
  •

  • Specification

  • Type	Low impedance / 8/16 Ohm), Line 70/100 V
    Power	2 x 100W @ 8 Ohm / 200W (70/100V Line)
    THD+N	<0.1% @ 1 kHz, 15W, 8 Ohm / 16 Ohm, <0.2% 1 kHz, 30W, 70V / 100V
    Frequency Range	20 Hz - 20 KHz
    Controls	Line volume, Mic gain, Tone control (bass, treble), Master volume, Function selector
    Connections	Mic: 3 pin euroblock, Line in: RCA, Minijack, Line out: RCA, Amp out: terminals, RS485: RJ45

    Other functions	Bluetooth, RS485 commands, antifeedback, micro priority
    Power supply	100-240 V - 50/60Hz
    Dimensions	215 x 48 x 264 mm
    Weight	2.3 Kg
