Equipson Work PA-120 USB/R Amplifier With Mixer and Player

Equipson Work PA-120 USB/R Amplifier With Mixer and Player

• PA 120 USB / R is a 100 V 60 W line or low impedance installation amplifier with 5-input mixer audio player / recorder on USB / SD support up to 32 GB.

• PA 120 USB / R is a 100 V 60 W line or low impedance installation amplifier with 5-input mixer audio player / recorder on USB / SD support up to 32 GB, with which it is possible to record messages and store them for use later. The mixer has independent volume control, master control and tone control (treble / bass). It has a Pre-out output to send the mixed signal to an external amplification system. It includes a push button for the siren and a Tel / Emer connection for the broadcasting of messages with priority over all entrances. In addition, it has emergency power terminals (24 V DC).

  FEATURES

  • 2 19-inch rack units.
  • USB / SD / MMC recorder / player.
  • Telephone / emergency connection for paging and communications functions.
  • 2 warning tones.
  •

  • Specification

  • Type	Low impedance (8 Ohm), Line 25/70/100 V
    Power	120 W @ 8 Ohm, L25/70/100V
    Input Sensitvity	1mV (Mic), 178 mV (Line), 200 mV (Aux1), 630 mV (Aux2), 1V (Power In), 100 mV (Telephone)
    Input Impedance	250 Ohm (Mic), 47 KOhm (Line, Aux, Power In), 600 Ohm (Telephone).

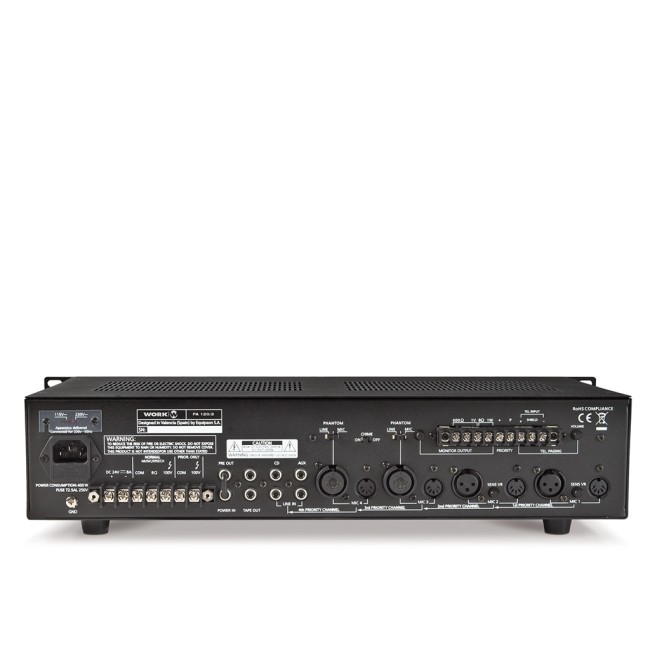

    Connectors	4 x XLR3 (MIC), 2 pairs x RCA (AUX IN), 1 pair x RCA (Tape Out), Terminals (Speakers)

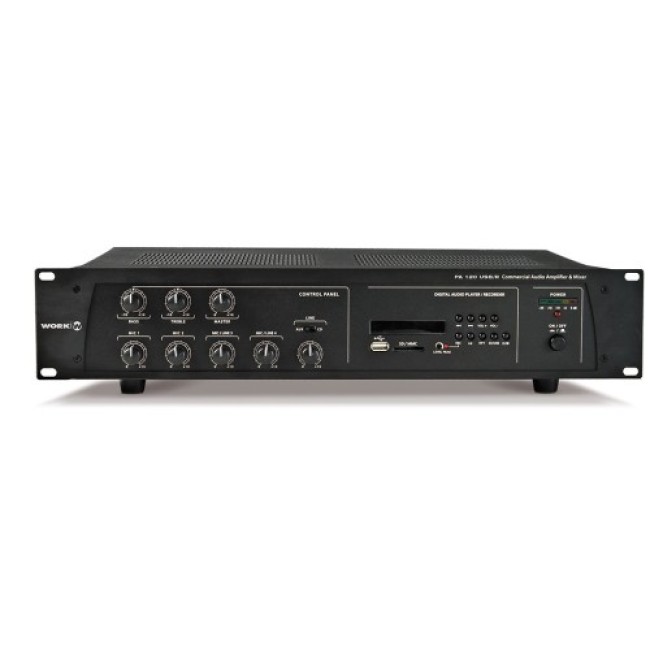

    Controls	Independent gain for mic and aux inputs. Tone control for bass and treble, master control.
    Frequency Response	50-20000 Hz (Line), 60-15000 Hz (Mic), 200 Hz - 10 kHz (Tel)
    THD+N	<1% @ 1KHz

    S/N ratio	Independent gain for mic and aux inputs. Tone control for bass and treble, master control.
    Phantom Power	+17 V ± 1V
    Other functions	MP3 / WMA player (USB / SD), 2 tones (´Ding-dong´ tone for warning prior to communication), Priority channel Tel / Emergency
    Power supply	115/230 V AC - 50/50 Hz. 24V - 4A
    Consumption	295 W
    Dimensions	483 x 44 x 300 mm
    Weight	10 Kg
