Equipson Work NEO-5A Installation Loudspeakers

Equipson Work NEO-5A Installation Loudspeakers

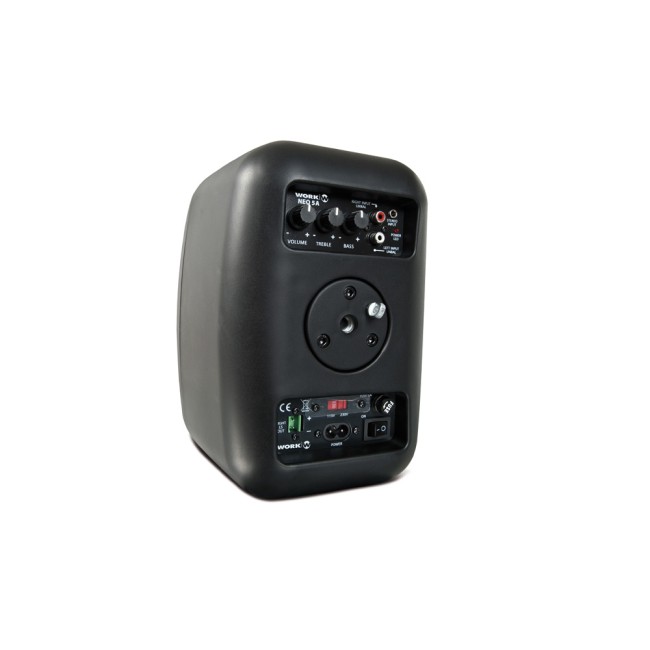

• NEO 5A is an self-powered loudspeaker made of ABS plastic and white or black aluminum grille, composed of a 5.25'' loudspeaker and a 0.5'' tweeter.
• Description:

• NEO 5A is an self-powered loudspeaker made of ABS plastic and white or black aluminum grille, composed of a 5.25'' loudspeaker and a 0.5'' tweeter. The set consists of an active box that contains a 2-channel 25 W amplifier that powers the same box that houses it and the passive box of the system.

  NEO 5A is also very simple and quick to install, thanks to the new support designed exclusively for this model, which also allows a quick orientation of the box in both axes.

  FEATURES

  • Passive loudspeaker powered from active loudspeaker.
  • Wall brackets included.
  • IP 54 range.
  •

  • Specification:

  • Type	2 ways. Active + passive
    Power	2 x 25 W RMS
    LF Transducer	5.25" Woofer
    HF Transducer	0.5" Tweeter
    Input Sensitvity	1V / 2.21 dBu
    Sensitivity (1W @ 1m)	91 dB
    SPL Max	107 dB
    Coverage Angle (H x V)	90º x 70º
    Frequency Range	94 Hz - 20 KHz

    Connections	Audio In: 2 x RCA, 1 x Minijack 3.5 mm, Amp Out: Euroblock 2 pin, Passive: 2 x Binding post
    Controls	Power switch, Volume, Tone control (high, low), Voltage selector
    Enclosure material	Polypropylene
    Grill	Aluminum
    Inserts / Rigging	Wall brackets (included)
    Colour	White (RAL 9003), Black (RAL 9004)
    IP Protection	IP54

•
