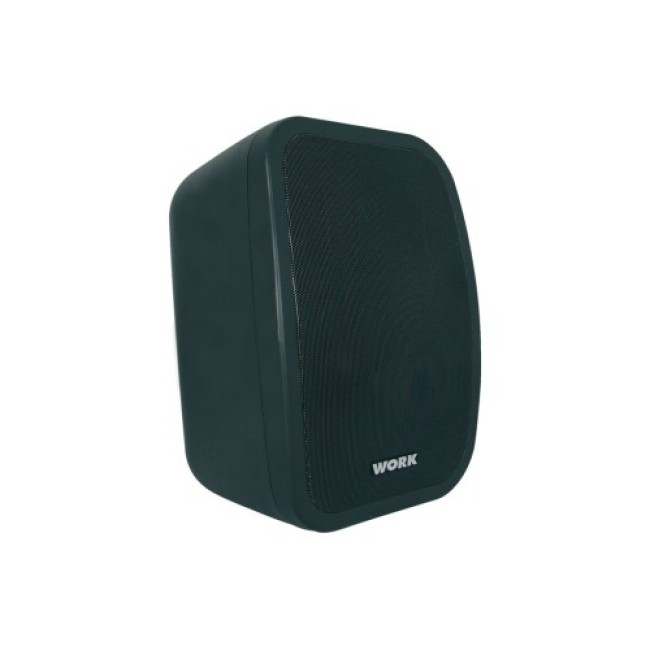

Equipson Work NEO-5 IP Passive Loudspeaker

Equipson Work NEO-5 IP Passive Loudspeaker

• Passive loudspeaker 40 W @ 8 Ohm, 16 W L100V.
• Description

• With an IP protection factor of 65, NEO 5 IP guarantees installations in outdoors with heavy rains, which are a very demanded feature for this kind of surface mounted loudspeakers. Technical specs are identical to NEO 5 except for the rear connection which has been changed to a cable with the different power taps.

  FEATURES

  • Suitable for high and low impedance installations.
  • IP 65
  • Wall brackets included.
  • Price per couple.
  •

  • Specification

  • Type	2 ways. Passive
    Low Impedance Power	40 W @ 8 Ohm
    L100V Power	16 W @ 625 Ohm, 8 W @ 1k25 Ohm, 4 W @ 2k5 Ohm, 2 W @ 5 KOhm
    L70V Power	8 W @ 625 Ohm, 4 W @ 1k25 Ohm, 2 W @ 2k5 Ohm, 1 W @ 5 KOhm
    Nominal Impedance	8 Ohm
    LF Transducer	5.25" Woofer
    HF Transducer	0.5" Tweeter
    Sensitivity (1W @ 1m)	88 dB
    SPL Max	100 dB

    Coverage Angle (H x V)	90º x 70º
    Frequency Range	60 Hz - 20 KHz
    Enclosure material	Polypropylene
    Grill	Aluminum
    Inserts / Rigging	Wall brackets (included)
    Colour	White (RAL 9003), Black (RAL 9004)
    IP Protection	IP 65
