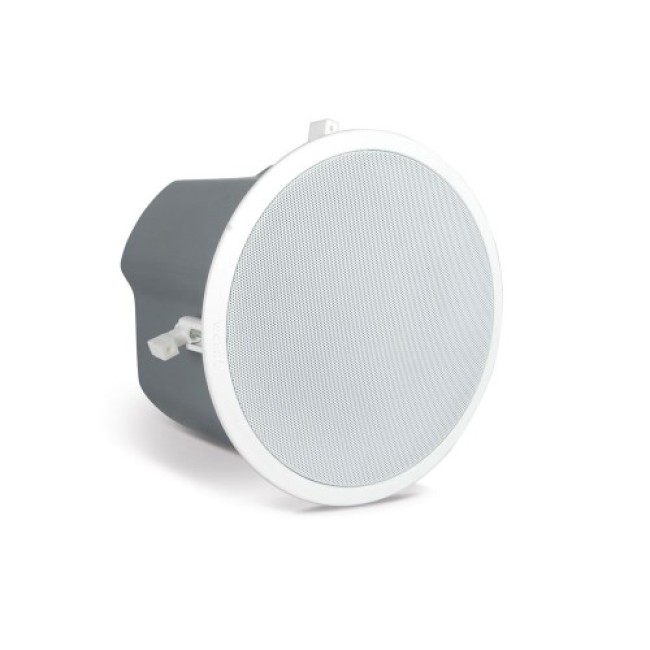

Equipson Work IC-6 PRO-A Self-Powered Ceiling Loudspeaker

Equipson Work IC-6 PRO-A Self-Powered Ceiling Loudspeaker

• IC 6 PRO A is a ceiling loudspeaker with a 25 W DMX controlled amplifier.

• IC 6 PRO A is a ceiling loudspeaker with a 25 W DMX controlled amplifier. It uses a DMX channel to control the volume, as well as to turn the amplifier on and off (Standby mode for energy saving). It has DIP switches on the back to select the start DMX channel. The included class D amplifier features an output power of up to 25W @ 8 ohms. The balanced input allows working with long distance cables.

  FEATURES

  • Class D amplifier.
  • RS485 / DMX or DC 0-10V analog signal (for volume control).
  • On / Off (Standby Mode) by DMX.
  • Balanced input signal.
  •

  • Specification:

  • Type	Self-powered. 2 ways
    Amp Power	25 W @ 8 Ohm
    Input Impedance	10 KOhm
    LF Transducer	Woofer 6.5"
    HF Transducer	Tweeter 3/4"
    Frequency Range	60 Hz - 20 KHz
    Sensitivity	88 dB
    Max SPL	102 dB

    Mounting diameter	220 mm
    Mounting depth	230 mm
    Material	Enclosure: ABS plastic; Grille: metal
    Colour	White (RAL 9003)
    Power supply	24 V DC (adapter not included)
    Dimensions	Ø241 x 171 mm
    Weight	2.8 Kg
