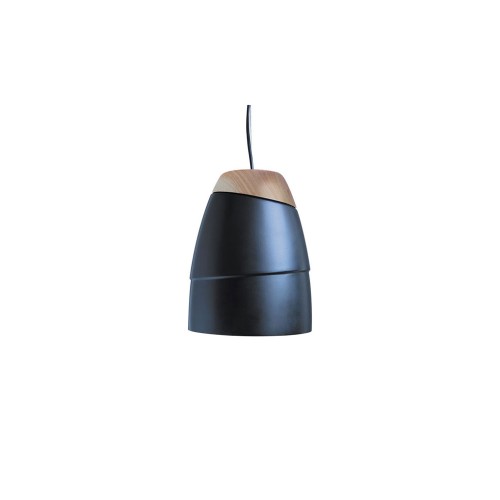

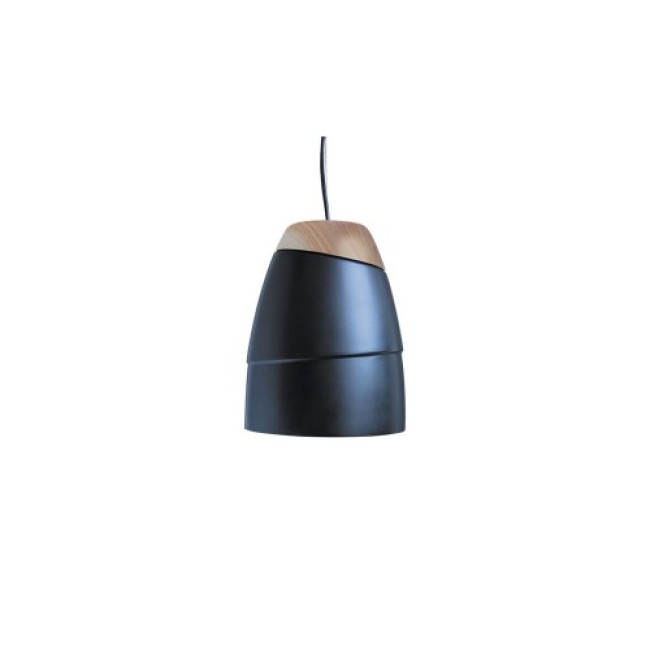

Equipson SN6 Passive Suspension Loudspeaker

Equipson SN6 Passive Suspension Loudspeaker

• SN6 is a passive "pendant" loudspeaker. It is a coaxial, two-way, full-range system that provides speech intelligibility and musical clarity in complex acoustic environments.
• Description

• SN6 is a passive "pendant" loudspeaker. It is a coaxial, two-way, full-range system that provides speech intelligibility and musical clarity in complex acoustic environments such as shopping malls, places of worship, restaurants, conference centers, hotels, airports, train stations, swimming pools, meeting rooms. for conferences or museums, where high ceilings create a highly reverberant sound field. Each unit uses a 6 "loudspeaker, with a 1.5" voice coil, in a bass reflex enclosure, and a coaxial compression driver with a polymer diaphragm and a 1 "diameter voice coil. The enclosure is made of single fiberglass part, so that there are no visible screws.


  Features

  • Pendant type loudspeaker.
  • Fiberglass.
  • Coaxial compression driver.
  • Low impedance and 70/100 V line.
  •

  • Specification
  •


  • Type	2 ways. Passive
    Low Impedance Power	125 W RMS
    L100V Power	60 W
    L70V Power	30 W
    Nominal Impedance	8 Ohm
    LF Transducer	6" Woofer, 1.5" Voice Coil
    HF Transducer	1" Driver compression, 1" Exit
    Sensitivity (1W @ 1m)	93 dB
    SPL Max	120 dB
    Coverage Angle (H x V)	90º x 90º
    Frequency Range	72 Hz - 21 kHz (-10dB) 87 Hz - 20.5 kHz (-6 dB)

    HPF filter recommended	Butterworth 24dB/Oct, 45 Hz
    Connections	Hose with four cables for connection in high and low impedance
    Enclosure material	High quality fiberglass
    Grill	Steel grille, with internal foam protection
    Inserts / Rigging	A steel rigging point
    Colour	Black or white
    Includded accessories	A main steel rigging cable 5m long, 2mm in diameter (CS 10 E), and a steel safety cable 5m long, 2mm in diameter (CS 10 E)
    Optional accessories	Top cover in wood finish or custom color on request (TP6)
    Dimensions	309 x 246 x 246 mm
    Weight	7.5 Kg
