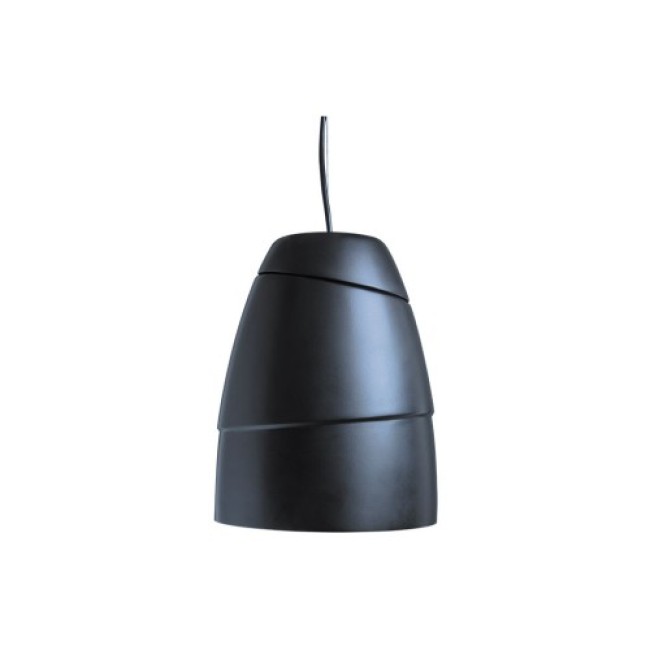

Equipson SN SUB 8 Passive Suspension Subwoofer

Equipson SN SUB 8 Passive Suspension Subwoofer

• SN SUB 8 is a passive "pendant" subwoofer intended to provide low-end reinforcement to the SN Series full-range pendant loudspeaker.

• SN SUB 8 is a passive "pendant" subwoofer intended to provide low-end reinforcement to the SN Series full-range pendant loudspeaker. Together they provide voice intelligibility and musical clarity and depth in acoustically complex environments such as shopping malls, houses of worship, restaurants, conference halls, hotels, etc., where the reverb level is very high. Each unit features an 8" driver, 2" voice coil, in a bass reflex enclosure with optimized dual resonators. The driver and its rubber surround allow deep, distortion-free sound even at high levels. The enclosure is made of one-piece fiberglass, so there are no visible screws.

  Features

  • Pendant type loudspeaker.
  • Fiberglass.
  • Low impedance.

  • Specification:

  • Type	Passive subwoofer. Bass reflex. Pendant
    Low Impedance Power	350 W RMS
    Nominal Impedance	8 Ohm
    LF Transducer	8" Woofer, 2" Voice Coil
    Sensitivity (1W @ 1m)	86 dB SPL
    SPL Max	116.5 dB SPL peak
    Coverage Angle (H x V)	Omnidirectional
    Frequency Range	37 Hz - 185 Hz (-10 dB), 42 Hz - 165 Hz (-6 dB)
    HPF filter recommended	Butterworth 24dB/Oct, 20Hz
    Connections	Two pole stripped wire

    Enclosure material	High quality fiberglass
    Grill	Steel grille, with internal foam protection
    Inserts / Rigging	A steel rigging point
    Colour	Black or white
    Includded accessories	A main steel rigging cable 5m long, 2mm in diameter (CS 10 E), and a steel safety cable 5m long, 2mm in diameter (CS 10 E)
    Optional accessories	Customizable top cap
    Dimensions	437 x 347 x 347 mm
    Weight	12 Kg
