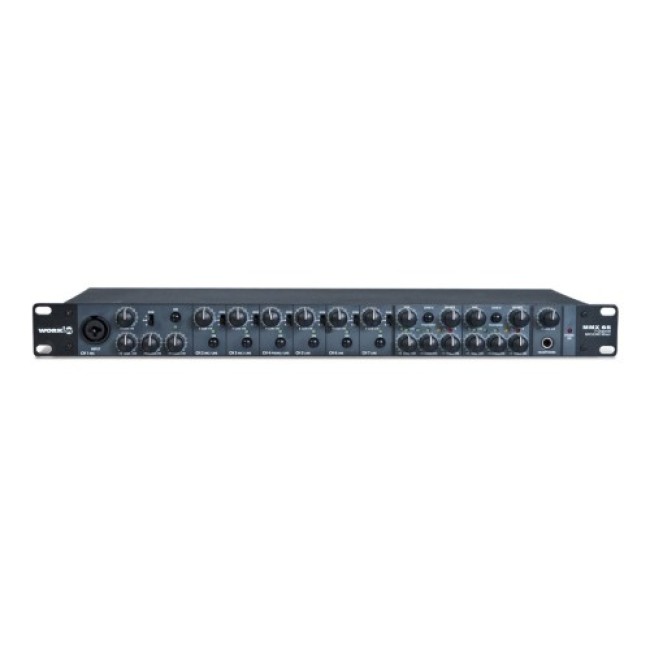

Equipson MMX-65 7-Channel Mixer

Equipson MMX-65 7-Channel Mixer

• 6-channel mixer. 1 HU rack 19'', zone audio mixer composed of two independent output zones with their own equalizer.
• Description:

• MMX 65 is an zone audio mixer composed of two independent output zones with their own equalizer.
  This versatile device features 6 input channels with source selector and priority for the first Mic channel. Additional functions for voice channel (delay, equalizer, sensitivity adjustment) provide an optimum control of audio mix.
  Each input channel can be assigned to zone 1, 2 (or both). This is particularly useful for installations like stores or museums.

  FEATURES

  7 input channel mixer
  Inputs: 6 MIC/LINE , 1 LINE/Phono, 3 LINE.
  Mic 1 input with attenuator, talkover sensitivity, adjustment, delay, EQ and gain control.
  Phantom supply
  Mute function available for all the inputs.
  Two output zones with gain, balance, EQ and mono/stereo selector.
  Headphone output with volume control.

  Specification:

  Input channels	Ch 1: Microphone (XLR3), Ch 2 and 3: Microphone (XLR3, Euroblock), Ch 4: Stereo Line/Phono (RCA), CH 5 to 7: Stereo Line (RCA)
  Departures	Zone A: 2 x XLR3, Zone B: 2 x 1/4" TRS Jack, Headphones: 1/4" TRS Jack
  Equalization	Treble: +/-12dB @12KHz, Mid: +/-12dB @1KHz, Bass: +/-12dB @80Hz
  Phantom power	+12V (channels 2 and 3)
  Maximum input level	Mic: +10dBu, Line: +10dBu
  Sensitivity Input	Mic: -47.5dBu, Line: -10dBu
  S/N ratio	>75dBr (A-weighted)
  THD+N	<0.1% at +0dB ,22Hz~22KHz

  Impedance	Mic: 1 KOhm, Line: 10 KOhm, Outputs: 120 KOhm
  Maximum output level	+26 dBu XLR & TRS balanced, +22 dBu RCA unbalanced
  cross talk	>65d B @ 20Hz~22KHz A-weighted
  Other functions	Talkover function with adjustable sensitivity (channel 1), zone assignment selector on each channel
  Dimensions	483 x 44 x 200mm
  Weight	2.2kg
