Denon AVRX6800H 11.4 Channel 8K AV Receiver

Denon AVRX6800H 11.4 Channel 8K AV Receiver

• 11.4 Ch. 140W 8K AV Receiver with HEOS® Built-in.

• Description

  Designed and manufactured in Japan, the AVR-X6800H drives 11.4 channels of amplification for an upscaled experience. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X6800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.

  FEATURES

  • 11.4 channels
  • 140W per channel
  • 8K Ultra HD
  • 3D Audio
  • HEOS® Built-in
  • Seven HDMI Inputs

  Enveloping 3D audio

  Feel like you're in the center of the action with enveloping 3D sound.

  Expert ready

  Take advantage of the wide variety of configuration options to best fit your space.

  Denon craftsmanship

  Designed and manufactured at Denon facilities in Japan to meet our highest standards.

  Powerfull 11 channel amplifier

  Featuring a sophisticated power amplifier design, the AVR-X6800H delivers high-power performance at 140 watts per channel (8 Ohms, 20 Hz–20 kHz, THD: 0.05%, 2 ch. driven) to ensure a dynamic and precise entertainment experience.

  3D audio experience

  Get enveloped in sound with Dolby Atmos®, DTS:X®, IMAX Enhanced and Auro 3D, along with Dolby Surround, DTS Neural:X, and Auro-Matic upmixer to optimize legacy content.

  Configuration flexibility

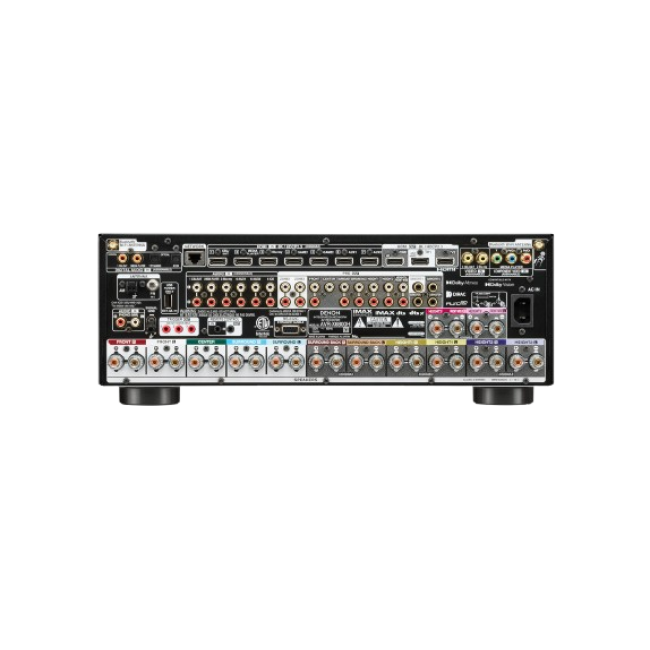

  AVR-X6800H offers many setup options and flexibility to adjust your home theater to meet your needs. Supports 13.4 channel processing capability, [Pre-Elevated shot of the back] Amplifier mode, and optional Dirac Live upgradability (with fee).

  Advanced 8K home theatre

  8K video is supported on all seven HDMI inputs and two of the three outputs. With HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR pass-through, there's no need to worry about video compatibility or picture quality.

  HEOS Built-in technology

  Stream music wirelessly from a variety of free and premium streaming services. Share content to HEOS devices, like Denon Home speakers, in other rooms.




  Specification

  Feature	Details
  Number of Power Amps	11
  Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)	140 W
  Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	175 W
  Power Output (6 ohm, 1 kHz, 10% 1ch Drive)	250 W
  Metal Front Panel	Yes
  System Remote Control	RC-1256
  Pre-programmed / Learnable / LCD Display	Yes / No / No
  Power Consumption in W	750
  Power Consumption No-Sound (ECO On / Off) in W	65W / 110W
  Standby Consumption in W	0.1
  CEC Standby Consumption in W	0.5
  Network Standby Consumption in W	Less than 2.0
  Maximum Dimensions	Antenna:Horizontal:(W x D x H) in mm ( Antenna:Vertical :(W x D x H) in mm) 【 w/o Antenna :(W x D x H) in mm】 17.1× 15.3 × 6.6 ( 17.1 x 15.3 x 9.3) ( 17.1 x 14.9 x 6.6)
  Carton Dimensions (Packaging) (W x D x H) in Inches)	20.9 x 18.3 x 11.9 (in)
  Weight in LBS	34.4
  Weight in LBS (Packaging)	40.1
  Power Supply	AC 120 V, 60 Hz
  Speaker Impedance	4–16Ω/ohms
  Pre-Amplifier Section	Input Sensitivity: 200 mV Frequency Response: 10 Hz–100 kHz — +1, –3dB (Direct mode) S/N Ratio: 102dB (IHF-A weighted, Direct mode)
  FM section	Tuning Frequency Range: 87.5–107.9 MHz
  AM section	Tuning Frequency Range: 520 kHz–1710 kHz
  What's in the Box	Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
  UPC Code	747192140359
