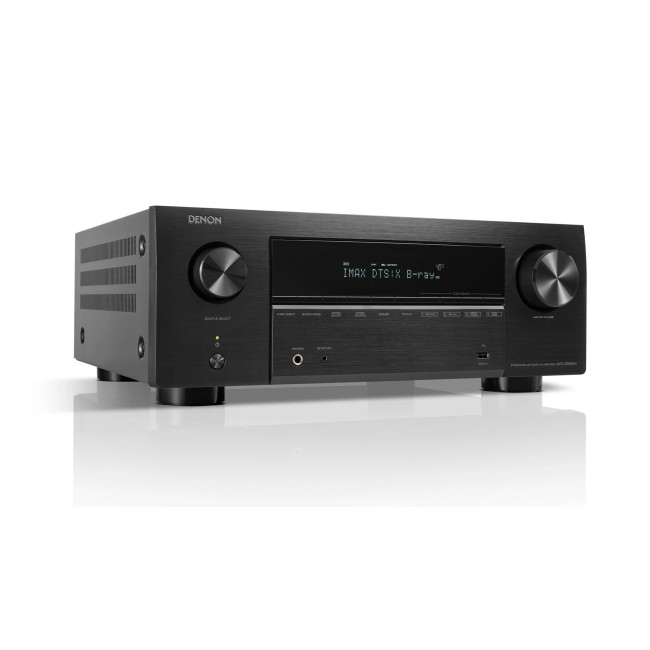

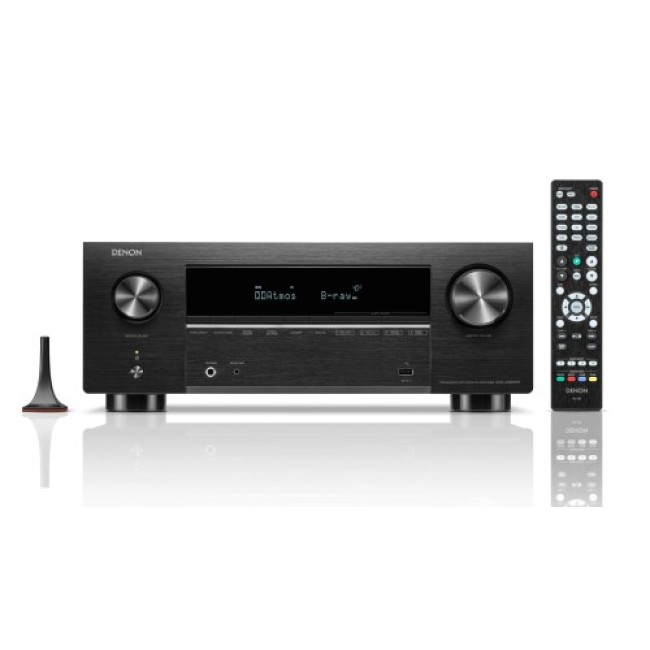

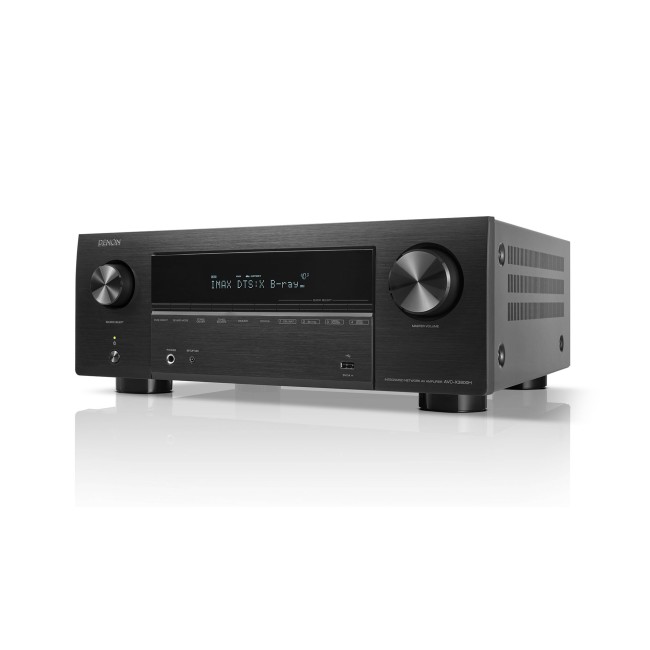

Denon AVCX3800HBKE2 9.4 Channel 8K AV Receiver

• With nine channels of amplification, up to four independent subwoofers, Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVC-X3800H envelops larger living spaces in theater-quality sound.
• Description

• With nine channels of amplification, up to four independent subwoofers, Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVC-X3800H envelops larger living spaces in theater-quality sound. Enjoy amazing 8K video quality and with HEOS® Built-in, wirelessly stream and share online music between rooms.

  FEATURES

  • Enveloping 3D audio: Feel like you're in the center of the action with enveloping 3D sound.
  • Expert ready: You'll be amazed at the available configuration options to best fit your space.
  • Geared for 8K: Enjoy amazing video quality from the latest 8K technology available.
  • Optimize for your room: Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional upgrade available with future SW update).

  Dolby Atmos

  Feel every dimension in Dolby Atmos. Upgrade your home theater with height speakers to unleash a fully immersive 3D audio experience from Dolby Atmos content. Dolby Surround upmixer engages all speakers to create 3D audio sensation from legacy content. Dolby Atmos Height Virtualization Technology creates the sensation of overhead sound even without height speakers. You can also enjoy Dolby Atmos music tracks available from Apple Music, Amazon HD andTIDAL and a compatible streaming device.

  DTS:X

  DTS:X immersive audio sound where it would naturally occur in space, creating lifelike, multi dimensional audio. DTS Neural:X upmixer offers improved immersion and heightened realism for legacy content. DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 7.1, 5.1, or 2.1speaker setup.

  IMAX Enhanced

  Get the most premium at-homeentertainment experience withIMAX Enhanced?the latesttechnology from DTS that sets anew standard for home theaterimaging, sound, scale, andclarity. See clearer pictures andbrighter images. Feelimmersive, heart-poundingaudio and experience premiumcontent digitally remastered byIMAX. You can enjoy IMAX Enhancedexperience starting from 5.1.4speaker setup. IMAX Enhancedcompatible TV or projector isrequired.

  Auro 3D

  Auro 3D elevates the hometheater experience to amazingnew levels by delivering theexcitement of threedimensionalsound for music,games, broadcast, and films,putting you in a cocoon of lifelikesound. Turn your existingaudio-visual collection into anAuro 3D experience, thanks tothe Auro-Matic upmixingengine. Supports up to 7.1.4.Auro 3D speaker configurationwith an external 2 channelamplifier.

  360 Reality Audio

  360 Reality Audio is a new immersive music experience that uses Sony‘s 360 Spatial Sound technology. Individual Sounds such as vocals, chorus, piano, guitar, bass and even the sounds of the live audience can be placed in a 360 spherical sound field. With 360 Reality Audio, music has never been so immersive and so real.Select Denon AV receivers are capable of 360 Reality Audio playback by connecting a 360RA streaming device via HDMI. Stay tuned for further updates!

  HDMI Connectivity with ARC/eARC

  Supports the latest technologyon all HDMI inputs and output.ARC (Audio Return Channel) oreARC (Enhanced Audio ReturnChannel) makes playing TVaudio through your AV receiversimple, with just a single HDMIconnection.eARC provides HD and 3D audiotransmission such as DolbyTrueHD, DTS HD Master Audioand Dolby Atmos while ARC islimited to conventional 5.1chaudio formats or PCM.




  Specification




  Power Amplifier Section
  Number of Poweramps	9
  Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)	105W
  Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)	-
  Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	135W
  Power Output (6 ohm, 1 kHz, 10% 1ch Drive)	215W
  Metal Front Panel	-
  System Control
  System Remote Control	RC-1253
  Pre-programmed / Learnable / LCD Display	-, -, -
  Power Consumption
  Power Consumption in W	660W
  Power Consumption No-Sound (ECO On / Off) in W	60W/100W
  Standby Consumption in W	0.1
  CEC Standby Consumption in W	0.5
  Network Standby Consumption in W	Less than 2.0
  Dimensions and Weight
  Maximum Dimensions	Antenna: Horizontal: (W x D x H) in inches Antenna: Vertical: (W x D x H) in inches 【w/o Antenna: (W x D x H) in inches】 17.1 x 15.3 x 6.6 ( 17.1 x 15.3 x 9.3 ) 【 17.1 x 14.9 x 6.6 】
  Weight in LBS	27.6
  Weight in lbs (Packaging)	33.3

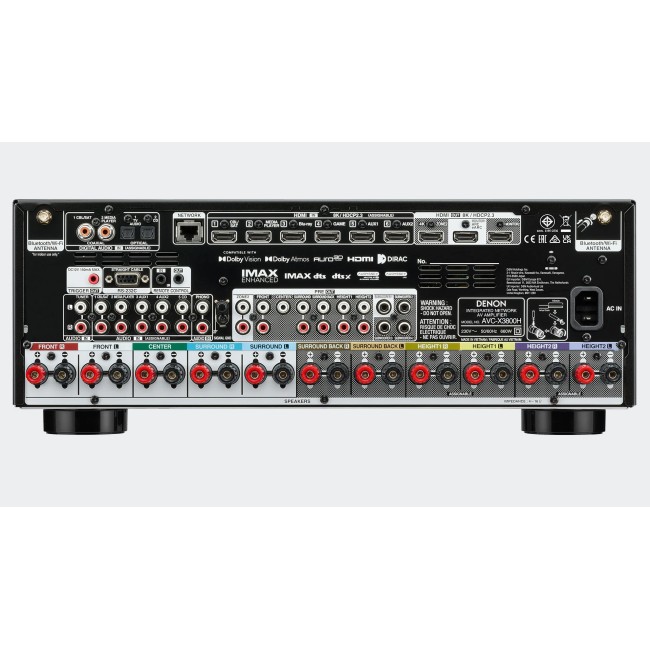

  Connectivity
  HDMI Inputs: Back, Front	6, -
  HDCP2.3 support	o
  HDMI Outputs: Main, Zone	2, 1
  HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB	o, o
  HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR	o, o, o, o, o
  ALLM (Auto Low Latency Mode) Pass-Through for Gaming	o
  Variable Refresh Rate, Quick Flame Transport, Quick Media Switching	o, o, -
  3D Signal Pass-through	o
  8K Signal Pass-Through, Scaling, GUI Overlay	o, o, o
  DSD Audio Capability	o
  Audio Return Channel (ARC), Enhanced ARC	o, o
  Auto LipSync	o
