Peavey CS6000 Details

The Peavey CS 6000 power amplifier is designed to provide years of reliable operation under heavy use.

Features

• Distortion Detection Technique (DDT)
• Line voltage selector switch
• High volume cooling fan
• 100 Hz, 24dB/octave, Linkwitz-Riley Crossover

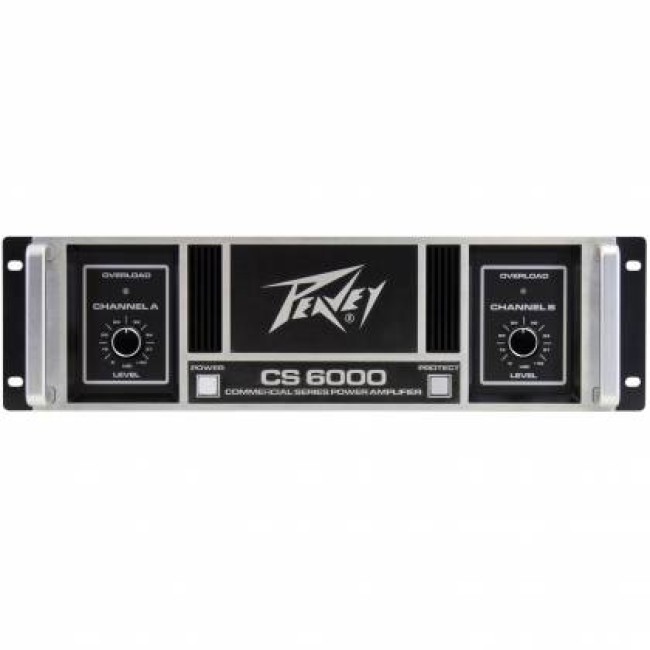

• Front panel LEDs: DDT, Signal,Thermal Protect and Power
• Switchable 2nd order 40Hz high pass filter

The CS 6000 power amplifier is designed to provide years of reliable, flawless operation under rigorous use. This amplifier offers the sonic superiority and unsurpassed reliability for which Peavey is famous, while remaining surprisingly compact. Advanced technology and extensive protection circuitry allow operation with greater efficiency into difficult loads and power conditions. The DDT (Distortion Detection Technique) circuitry ensures trouble-free operation into loads as low as 2 ohms. DDT protects drivers and ensures that sonic integrity is maintained, even in extreme overload conditions. The CS's high-efficiency design uses multi-rail class-H technology to produce high output power while reducing losses. Massive heat-sinks and a high volume cooling fan maintains a lower overall operating temperature, resulting in longer output transistor life.

Specifications

• Rated Power Bridge 4 Ohms @1kHz 0.15% THD: 5800 Watts
• Rated Power Bridge 8 Ohms @1kHz 0.15% THD: 4300 Watts
• Rated Power 2 Ohms @1kHz 0.15% THD Both channels driven: 2900 Watts
• Rated Power 4 Ohms @1kHz 0.15% THD Both channels driven: 2150 Watts
• Rated Power 8 Ohms @1kHz 0.15% THD Both channels driven: 1375 Watt
• Maximum Voltage Swing: 128 Vrms
• Minimum Lean Impedance: 2 Ohms
• Frequency Response (+0dB -1 dB @ 1 Watt): <10 Hz - 35 kHz
• Voltage Gain: x100 (+40 dB)
• Low-Cut Filter: -3 dB @ 40 Hz, 12 dB/Octave
• Crossover High-Pass and Low-Pass Filters (Linkwitz-Riley Alignment): 6 dB @100 Hz, 24 dB/Octave
• Crosstalk @ 1kHz-10kHz , 8 Ohms, 900 Watts: <87 dB
• Hum and noise 20 Hz to 22 kHz: < 95 dB
• Input Sensitivity +/-3% @ 1 kHz, 2 Ohms: 0.79V (0 dBu)
• Input Impedance Balanced: 20 kOhms
• Input Impedance Unbalanced: 10 kOhms
• Current Draw @ 120 VAC, 1/8th power, 2 Ohm load: 15.7A (1880VA)
• Current Draw @ 120 VAC, 1/8th power, 4 Ohm load: 12.8A (1535VA)
• Current Draw @ 120 VAC, 1/8th power, 8 Ohm load: 9.5A (1140VA)
• Current Draw @ 120 VAC, 1/3rd power, 2 Ohm load: 39.8A (4770VA)
• Current Draw @ 120 VAC, 1/3rd power, 4 Ohm load: 27.6A (3310VA)
• Current Draw @ 120 VAC, 1/3rd power, 8 Ohm load: 17.1A (2050VA)
• @ IDLE: 1.8A (220VA)
• Current Draw @ 240 VAC, 1/8th power, 2 Ohm load: 7.8A (1880VA)
• Current Draw @ 240 VAC, 1/8th power, 4 Ohm load: 6.4A (1535VA)
• Current Draw @ 240 VAC, 1/8th power, 8 Ohm load: 4.8A (1140VA)
• Current Draw @ 240 VAC, 1/3rd power, 2 Ohm load: 19.9A (4770VA)
• Current Draw @ 240 VAC, 1/3rd power, 4 Ohm load: 13.8A (3310VA)
• Current Draw @ 240 VAC, 1/3rd power, 8 Ohm load: 8.6A (2050VA)
• @ IDLE: 1.8A (220VA)
• Cooling: 120mm Variable speed fan. Rear to front air flow
• Controls Front: 2 input attenuators

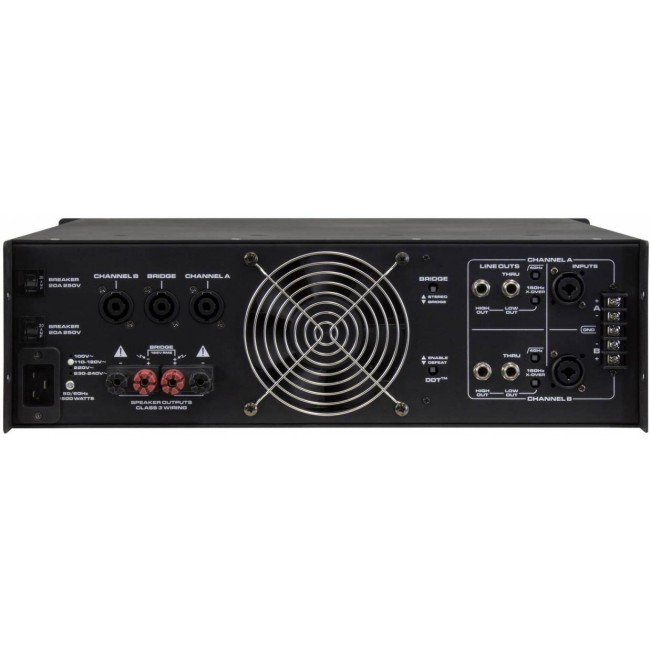

• Controls Rear: Bridge/Stereo Switch, DDT Defeat switch, 2 Crossover enable Switches, 2-High-
• pass filter enable switches
• Indicators: 2 Bicolor (red/green) LEDs of DDT/Signal indication; Power and Protect
• Protection: Short circuit, open circuit, thermal Infrasonic, Ultrasonic, reactive or mis-
• matched loads
• Input: XLR-6.3mm (1/4") phone combo, Screw terminal strip
• Line Output: 6.3mm (1/4") phone crossover Low-output-thru, crossover High-output
• Speaker Outputs: 3 twistlock, A, B and Bridge and 2 sets Binding posts
• Mechanical Construction: 0.090" (2.3mm) Steel
• Electrical Construction: Dual power supplies

The DDT (Distortion Detection Technique) circuitry of the CS 6000 ensures trouble-free operation into loads as low as 2 ohms.
