Crest Audio CPL 4L+ Black Loud Speaker

Crest Audio CPL 4L+ Black Loud Speaker

Description

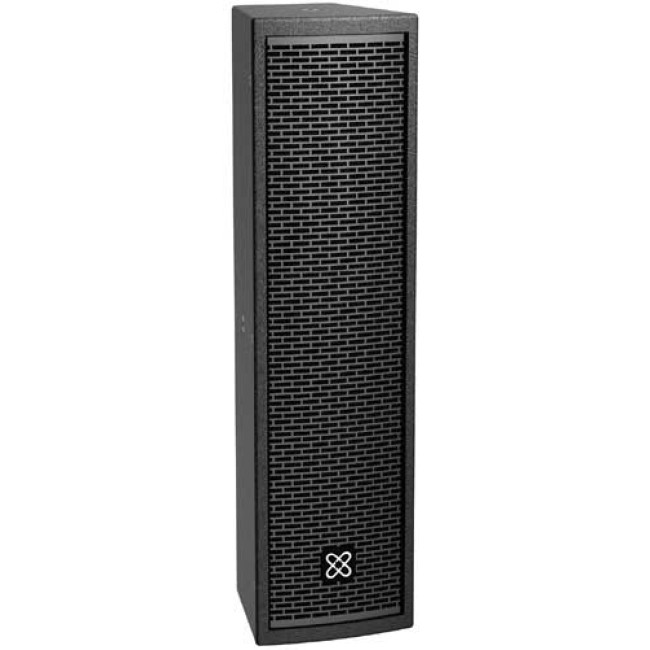

The Crest Audio® CPL™ 4L+ is a compact passive column array loudspeaker designed for high quality transmission of speech, music playback, public address and live performance reinforcement applications where space is at a premium.

The CPL 4L+ can be utilized for both permanent installations and portable live sound applications. Perfect for public address, monitoring and background audio reinforcement purposes typically required in houses of worship, clubs, bars/restaurants, retail outlets plus education and corporate meeting facilities or anywhere high quality discrete audio distribution is required.

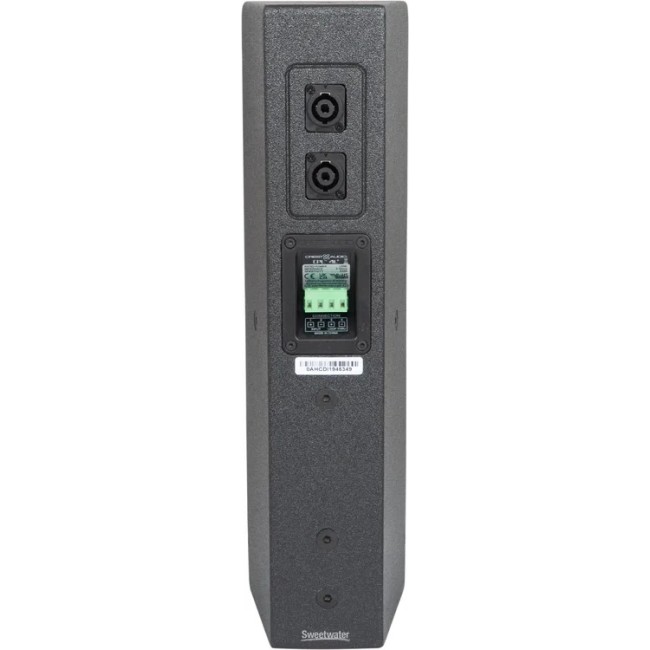

The CPL 4L+ is equipped with four 3 inch full-range Neodymium speakers having a 0.75 inch voice coil. The directivity pattern of the loudspeaker is measured at 90° horizontal and 25° vertical providing a wide yet well controlled audio coverage. Impedance of the loudspeaker is 8 Ohms allowing for easy daisy chaining. Connectivity is made via either two looping 4-pin twist-lock or one 4-pin Euroblock connectors.

The CPL 4L+ enclosure is built from prime-grade 12 mm plywood that offers sturdy mechanical and low resonant electro-acoustic characteristics together with a heavy-duty steel grille backed with acoustic foam to ensure maximum protection of the internal components. The loudspeaker is equipped with a total of 7 threaded suspension points offering multiple mounting options for various applications. Available in durable black and white finish.

Features CPL 4L+

• Compact passive column array loudspeaker

• Four 3” full-range Neodymium speakers, 0.75“ voice coil

• Continuous power handling: 120 Watts

• Nominal impedance: 8 Ohms

• Coverage pattern (HxV): 90° x 25°

• Connectors: 2 x 4-pin twist-lock & 4-pin Euroblock

• 2+/2- Loop Through

• 12 mm Plywood construction

• Sealed box system

• 7 x M8 suspension points (1 top, 1 bottom, 1 each side, 3 rear)

• Various mounting options

• Textured polyurea paint

• Available in Black and White

Technical Specs

• Powered:No
• Quantity:Single
• LF Driver Size:4 x 3" Woofer
• Power Rating:120W Continuous
• Total Power:480W Peak
• Impedance:8 ohms
• Inputs:1 x speakON, 1 x 4-pin Euroblock
• Outputs:1 x speakON, 1 x 4-pin Euroblock
• Frequency Range:150Hz-20kHz (-10dB)
• Maximum Peak SPL:120dB SPL
• Enclosure Material:15mm Plywood
• Height:17.52"
• Width:4.98"
• Depth:4.72"
• Weight:6 lbs.
• Manufacturer Part Number:04002490
