• Desktop User Panel with 8 pageable 4way levers , 2 IP ports.

• Description

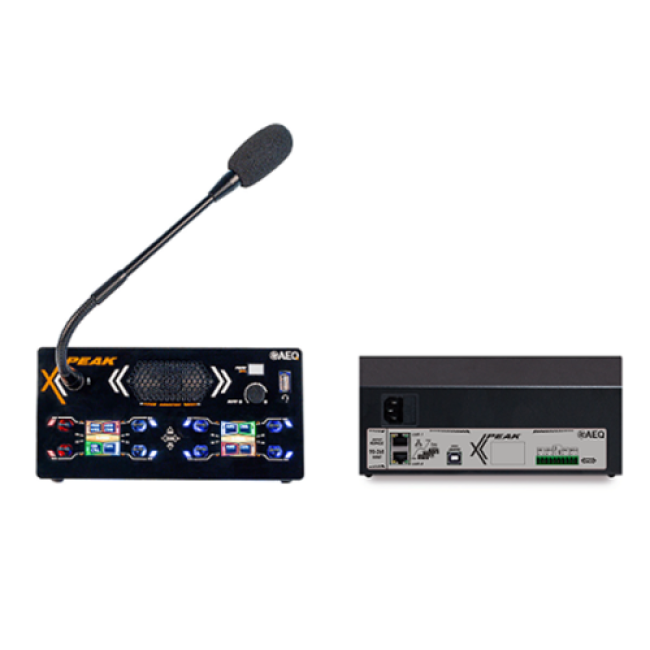

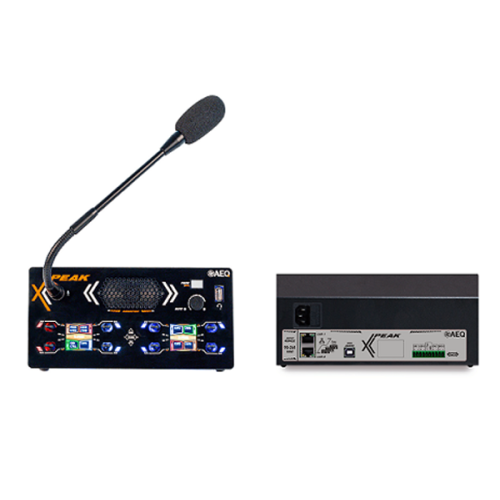

  Xpeak_D desktop user panels are the perfect choice in desktop environments. Its 8 4 way levers acting as 16 virtual keys facilitating their use, with functionalities of Talk-Listen and Volume.

  The signalling of functionalities through displays speeds up the handling of the equipment. The LEDs arranged on the levers show the communication groups in a simple and clear way.

  With USB and Bluetooth connectivity for headsets, this latter also allows you to make and receive calls from a smartphone.

  The Xpeak_D panels have a double Ethernet connector for star connection to a switch, or if required, to daisy-chain the user panels.

  - 8 x 4-way cross-point levers with associated RGB led.
  - 2 screens for menu and contextual information associated with the levers.
  - Rotary encoder, menu key and signalling LEDs.
  - Internal power supply.
  - Internal 1Gbps Ethernet switch, with two external RJ45 network ports to connect panels in “Daisy Chain” to a single switch port.
  - GPIO: 10-pin mini-Hartmann connector includes 2 opto-coupled GPIs and 2 GPOs, one external circuit power pin, and ground.
  - Bluetooth: The equipment incorporates a Bluetooth connection as an audio interface with a telephone or headset.
  - Front audio:
      - Gooseneck electret microphone supplied with the panel.
      - Internal speaker that develops 84 dB SPL @ 1 m.
  - USB Audio:
      - Front USB for headsets.
      - Rear USB Type B: To incorporate PC audio.
  - Bluetooth audio: The equipment can be paired with a Bluetooth device, for example a headset or a smartphone.
